Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]
Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]

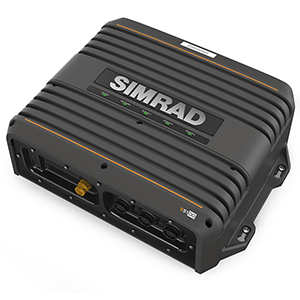

S5100 Module Redefining High-Performance Sonar
The S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.
Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.
Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.
Features:
- 3 fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHRIP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 3,000 meters/10,000 feet (transducer dependent)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders
