RAM Mount Double U-Bolt Base w/D Size 2.25" Ball for Rails from 1" to 1.25" in Diameter [RAM-D-235U]
RAM Mount Double U-Bolt Base w/D Size 2.25" Ball for Rails from 1" to 1.25" in Diameter [RAM-D-235U]
Double U-Bolt Base w/D Size 2.25" Ball for Rails from 1" to 1.25" in Diameter

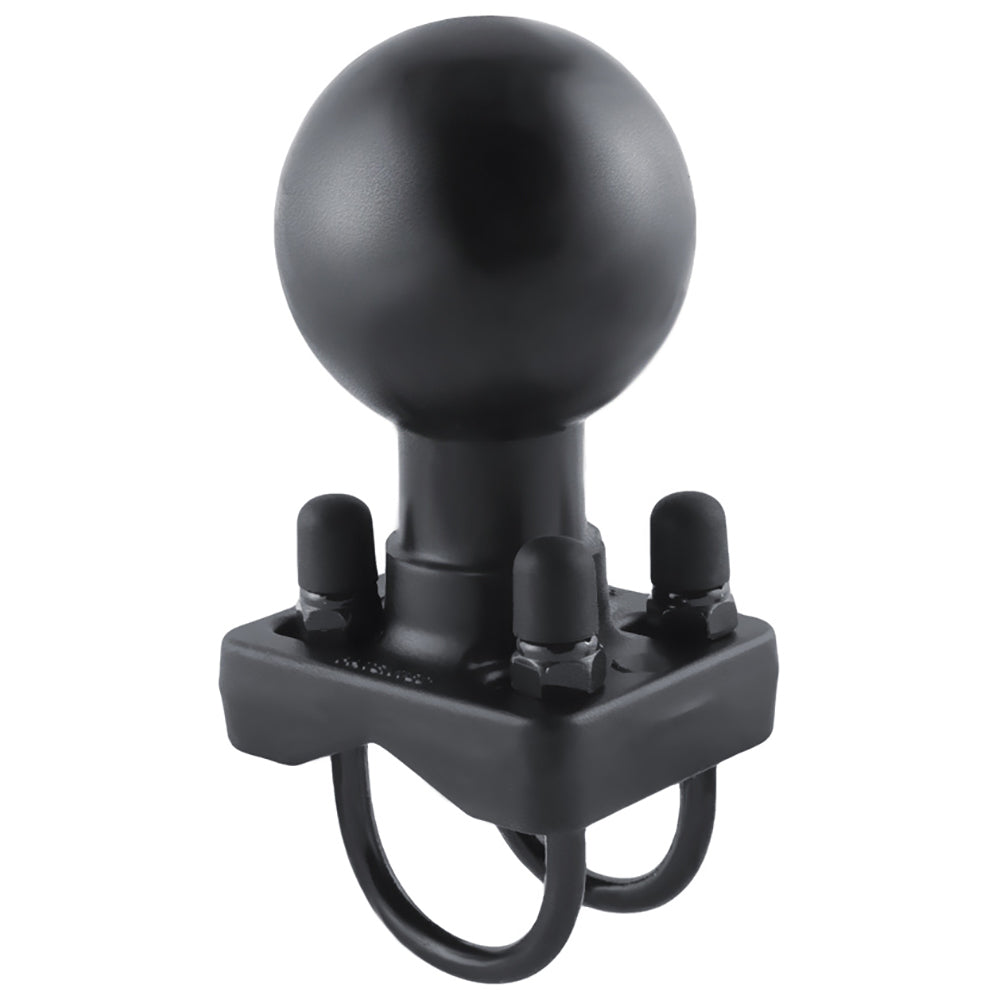

The RAM-D-235U consists of a double u-bolt base with 2.25" diameter ball and two stainless steel u-bolts. The double u-bolt base will accommodate rails from 0.75" to 1.25" in diameter.
HARDWARE INCLUDED
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
CLAMP RANGE
1" - 1.25" diameter
BALL SIZE
D Size (2.25")
WEIGHT CAPACITY
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
Note:
The "U" in the part number reflects product packaged in poly bag. This mount includes stainless steel u-bolts for preventing rust of the mount and black cover caps to be placed over the exposed ends of the u-bolt.
Weight:
0.86 lbs
