Navico xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20 Element - 9-Pin [000-13779-001]
Regular price
$1,131.50
Sale price
$1,131.50
Regular price
$1,379.00
Navico xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20 Element - 9-Pin [000-13779-001]
Regular price
$1,131.50
Sale price
$1,131.50
Regular price
$1,379.00
Product description

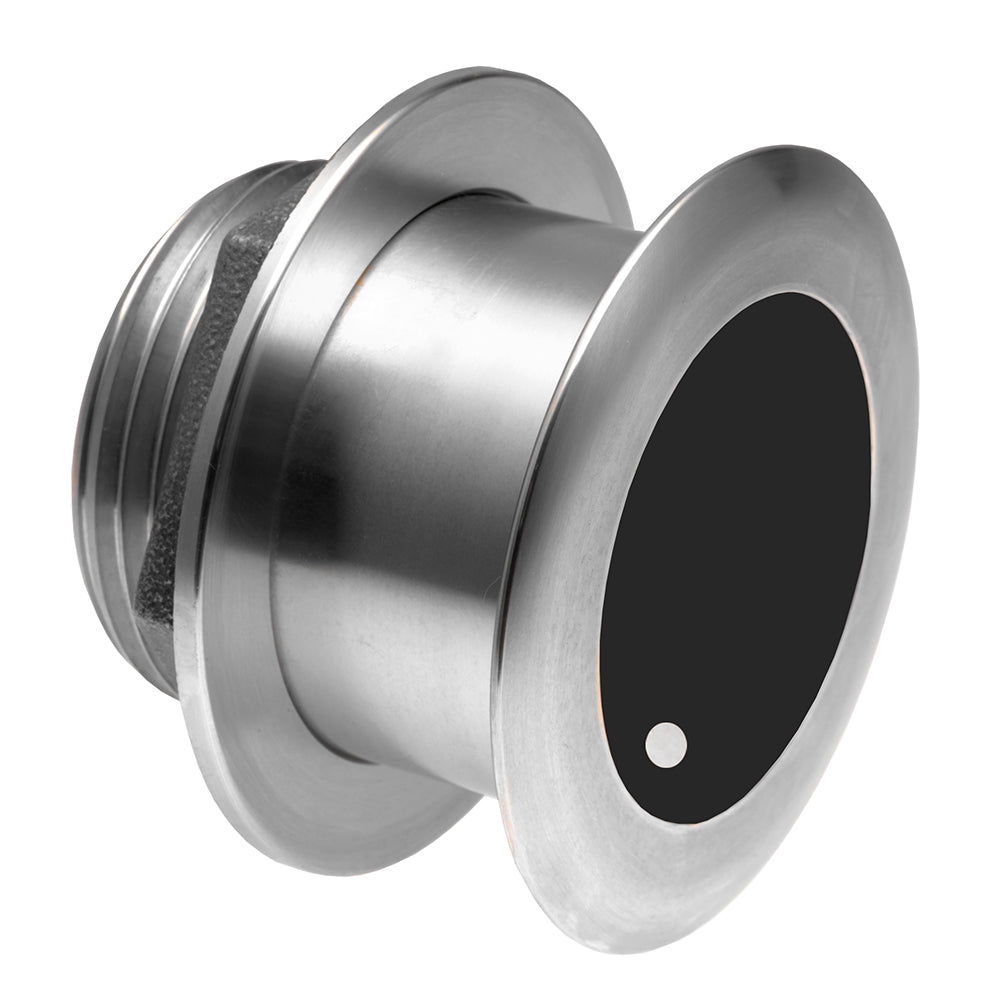

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20° Element - 9-Pin
Features:
- Black 9-Pin Connector
- Cable Length - 10M (33.0')
- SS175M - 1-Internal Broadband Ceramic Assembly
- Depth & fast-response water-temperature sensor
- Stainless Steel transducer housing
- Hull Type: Steel or aluminum
- Boat Size: Up to 11M (36’)
- Useable shaft length 71mm (2.80”)
Medium-Frequency (M)
- Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
Specifications:
- Mounting Style: Thru-Hull
- Cable Length (Feet): 10m
- Temperature: Yes
- Box Dimensions: 8"H x 10"W x 11"L WT: 10.8 lbs
- UPC: 9420024161906
Brochure (pdf)
