Navico Precision-9 Compass [000-12607-001]

Regular price $699.00
Sale price $699.00 Regular price
Product description

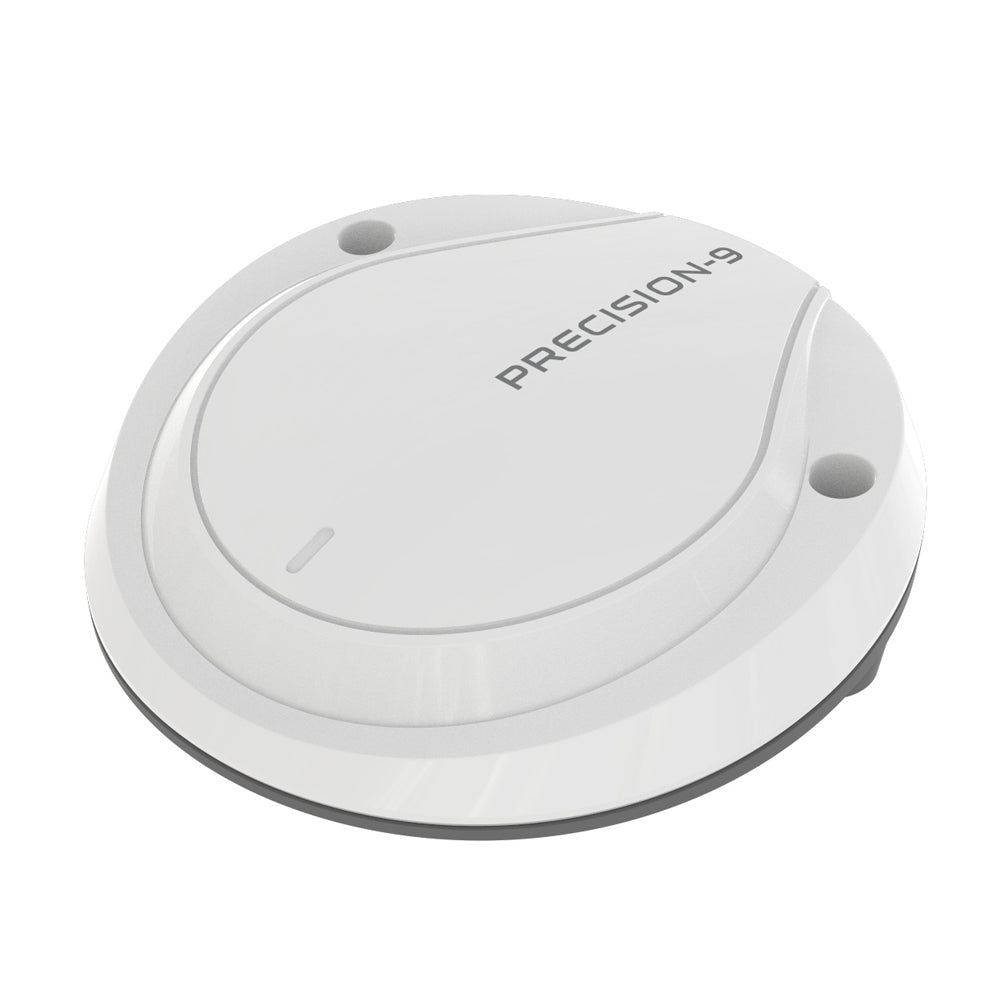

Precision-9 Compass

Precision-9, a solid-state compass that measures motion on nine separate axis alignments. Designed for both recreational and commercial markets.

Advantage of Innovation

The Precision-9 compass D which replaces the RC-42N rate compass D features modern, solid-state technology and components. Customers will notice dynamic improvements in performance of autopilot control and stabilized radar displays, including MARPA target tracking.

NMEA 2000® Heading & ROT Output

When connected to an NMEA 2000® network, the Precision-9 Compass will output Heading, Rate of Turn (ROT), Roll and Pitch data to networked autopilot, radar, sonar, multifunction displays and other navigational systems.

Solid-State Sensor Technology

The Precision-9 Compass incorporates a solid-state sensor array based on MEMS technology.

Mount Almost Anywhere

An easily adjustable mounting bracket and single-cable NMEA 2000® connectivity allow the Precision-9 Compass to be installed on any vessel, in almost any location.

Key Features

  • NMEA 2000® heading sensor for non-SOLAS vessels
  • Heading, Rate of Turn (ROT), roll and pitch output
  • Heading and ROT calculated using maximum poistions of rotation and motion
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of +/- 2° after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof for external up-masting on steel hulled vessels
  • Simple installation with a single NMEA 2000® connection


In the box

  • Compass Sensor
  • T-Connector - 000-0119-79
  • 15' NMEA 2000 Drop cable - 000-0119-86

Specifications:

  • Type: Parts
  • Box Dimensions: 4"H x 8"W x 11"L WT: 1.9 lbs
  • UPC: 9420024145999
