Minn Kota Edge 55 - Latch Door - Foot Control - 12V-55lb-45" [1355956]

Regular price $609.99
Sale price $609.99 Regular price
Product description

 Minn Kota Edge 55 - Latch  Door - Foot Control - 12V-55lb-45"

Edge motors allow you to navigate through tough conditions like stump fields, weed beds, and harsh weather. Designed for catching big fish, Edge motors come in foot or hand control models with rugged construction.

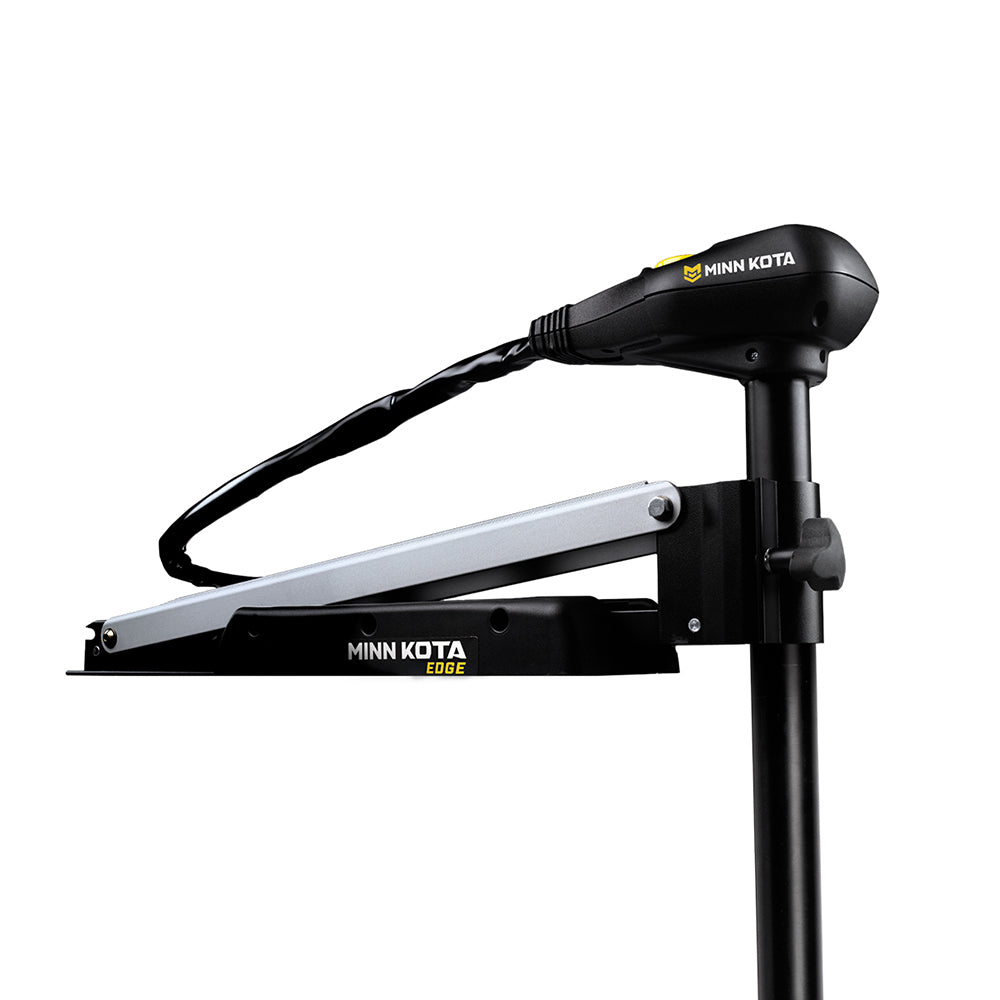

Motor Mounts: Motor mounts have been updated to feature an extruded upper arm composed of marine-grade anodized aluminum for longevity of trouble-free use.

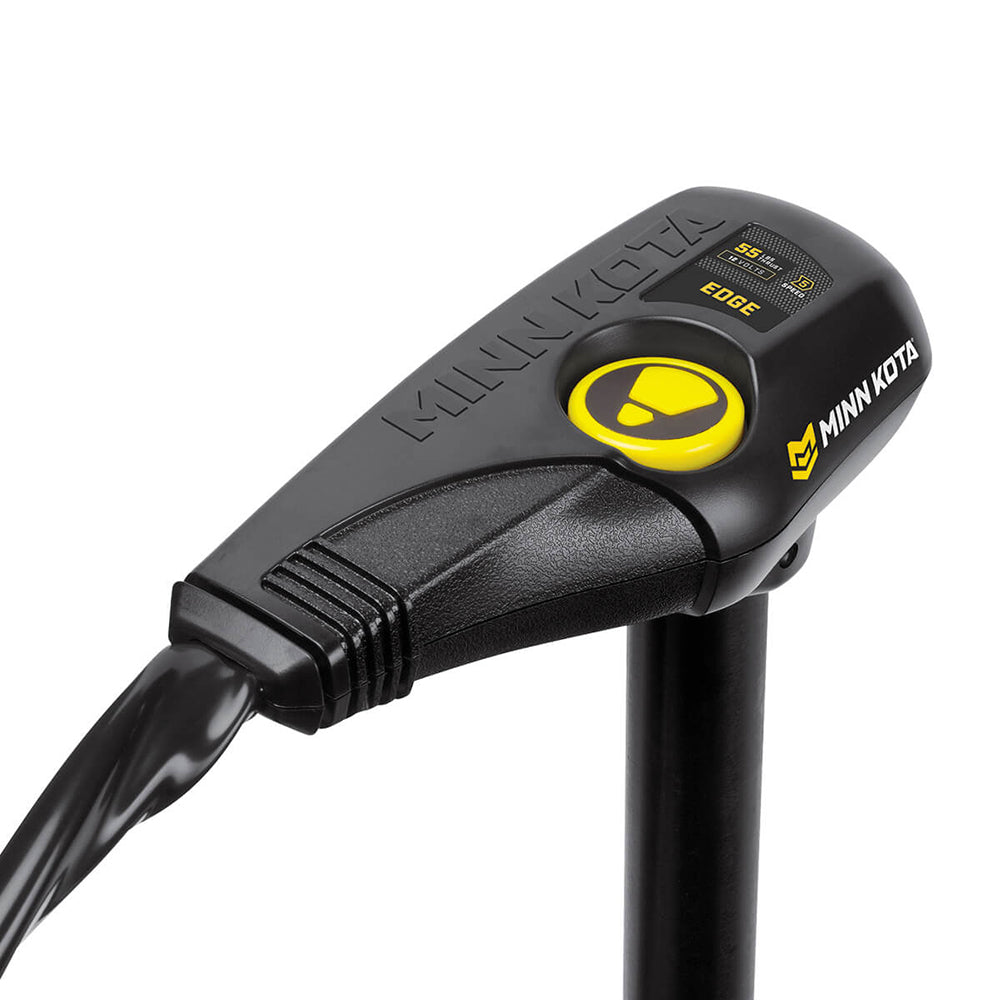

Motor Head: The redesigned motor head, made of impact-resistant hybrid composite material, includes a high-visibility directional indicator. The ultra-responsive foot pedal offers precise speed and steering control.

Latch & Door Mounting System: This system allows easy removal of the motor for security and storage and a guaranteed for life composite shaft.

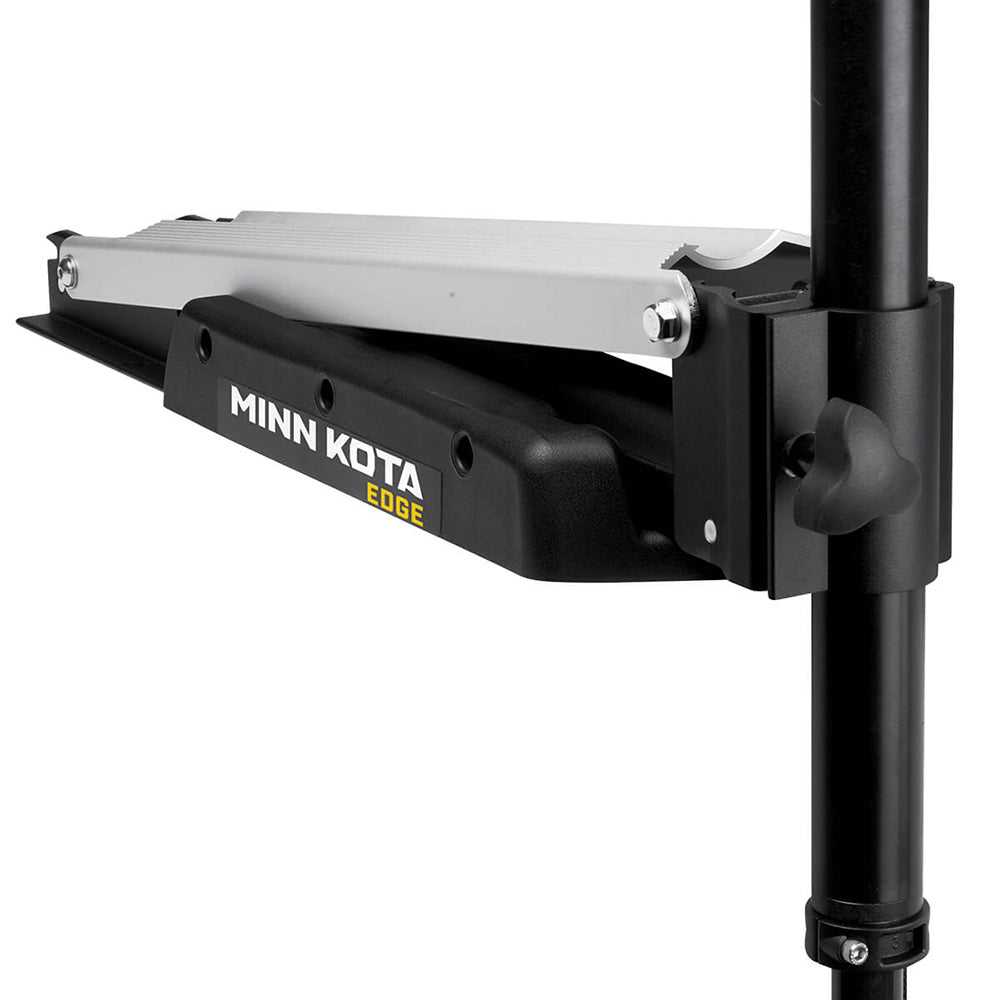

Edge Mount: Featuring an anodized aluminum arm with superior strength and a Latch & Door design that enables simple motor removal.

Latch & Door Design: This innovative design includes a soft grip knob for easy motor removal, perfect for safe and secure storage.

Directional Indicator: The easy-to-read indicator shows your direction clearly,  only available on models using a foot control..

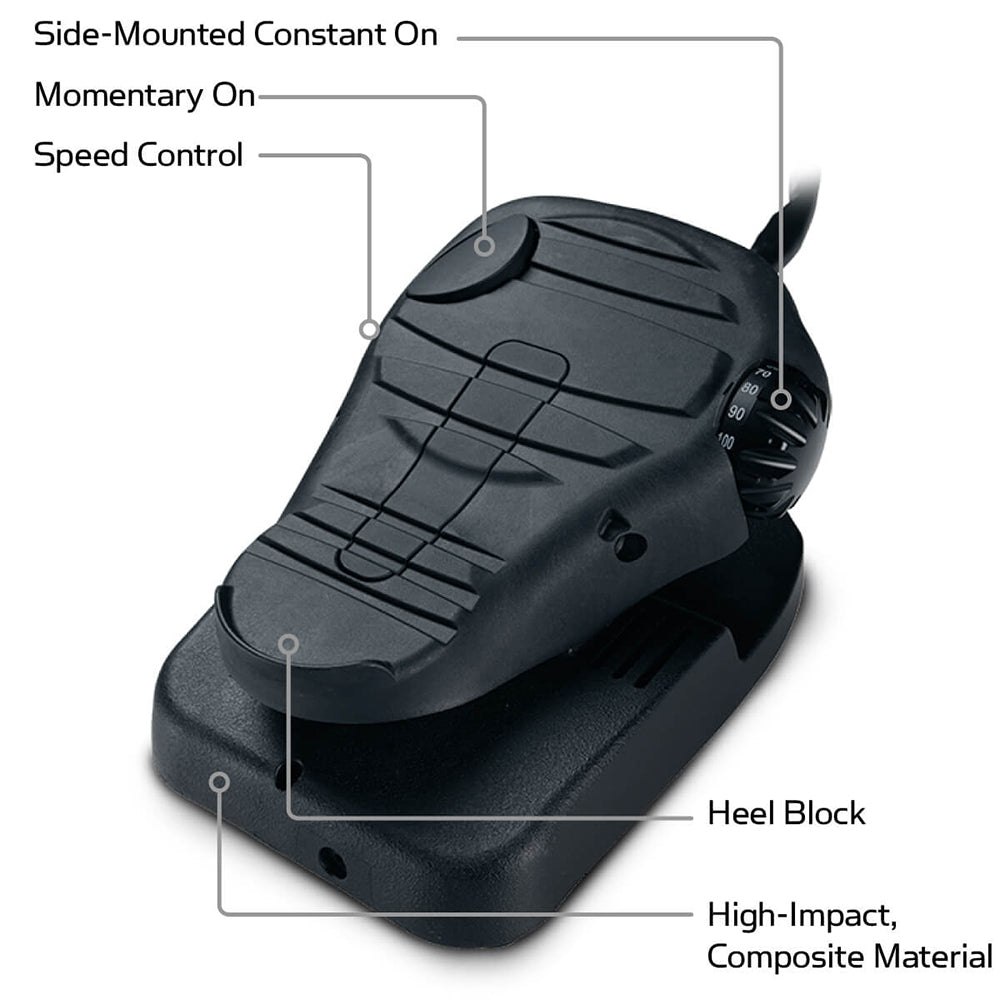

Foot Pedal: The redesigned, responsive pedal offers a wider pedal for foot room and better speed control. Select model availability or can be purchased separately.

5 Speed Settings: Five speed settings provide simple and instinctive speed control.

Cool, Quiet Power: Minn Kota motors are designed to run cooler and quieter, using extra-large windings and heat dissipating commutators which extends battery power and motor life. The unique system of bearings reduces friction and noise, so fish won't hear you coming.

Propeller: The Power Prop delivers extra torque to push through heavy vegetation.

Minn Kota Advantage: The indestructible composite shaft is stronger than steel, flexing on impact without breaking, kinking, or corroding. Minn Kota guarantees it for life.

2-Year Warranty: Minn Kota backs this motor with a two-year warranty.

Included:

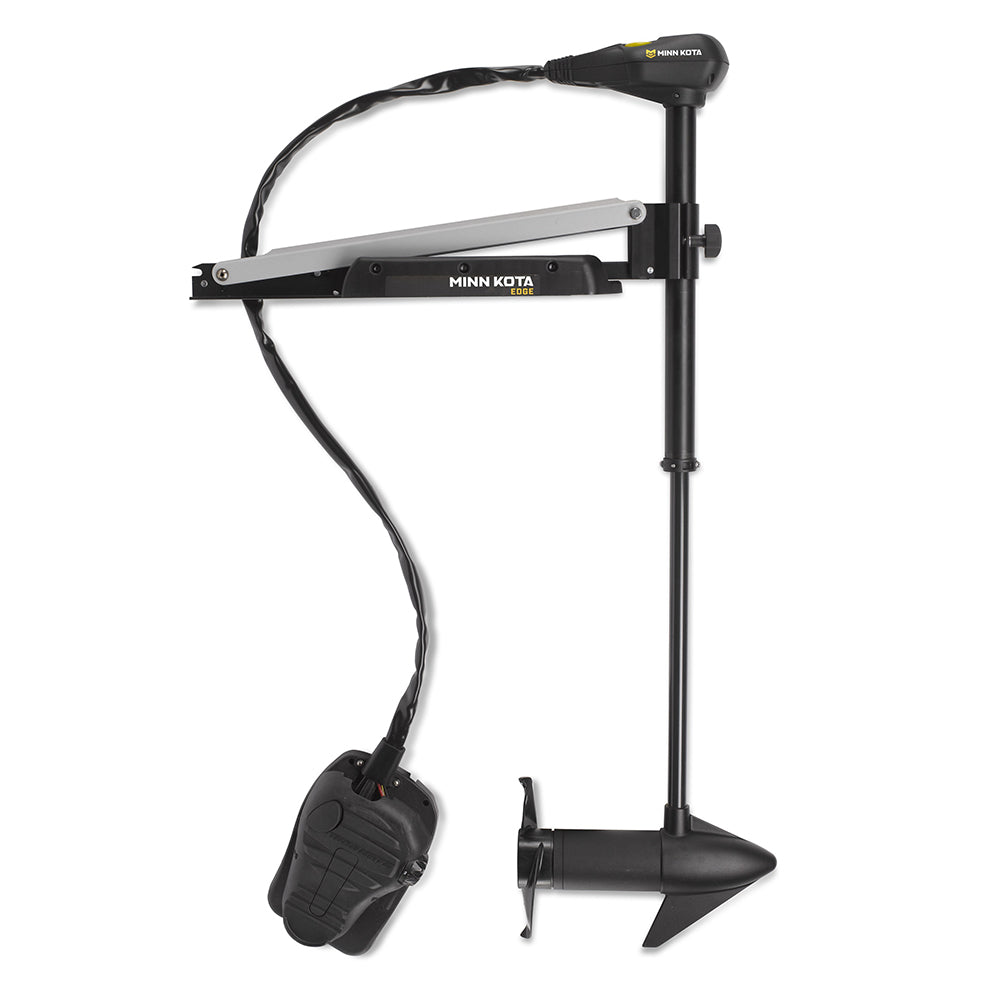

Edge 55 lb. 45" foot-control trolling motor, MKP-32 Prop, Hold Down Strap and Mounting Hardware.

Specifications:

  • Control: Cable Steer Foot Pedal
  • Volts: 12
  • Max Thrust: 55 lbs.
  • Shaft Length: 45"
  • Speed Control: 5-Speed
  • Max. Amp Draw: 50
  • Prop: Power Prop (MKP-32)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Included Propeller: MKP-32
  • Autopilot: No
  • Control Type: Foot Control
  • Mounting Style: Bow
  • Salt Water/Fresh Water: Fresh
  • Shaft Length (Inches): 45"
  • Thrust (Pounds): 55 lbs
  • Built-In Transducer: No
  • Voltage - Input Range (Volts): 12v
  • Series: Edge
  • Box Dimensions: 10"H x 21"W x 63"L WT: 50 lbs
  • UPC: 029402036318


Owner's Manual (pdf)
