Minn Kota Edge 55 - Hand Control - 12V-55lb-52" [1355963]

Regular price $539.99
Sale price $539.99 Regular price
Product description

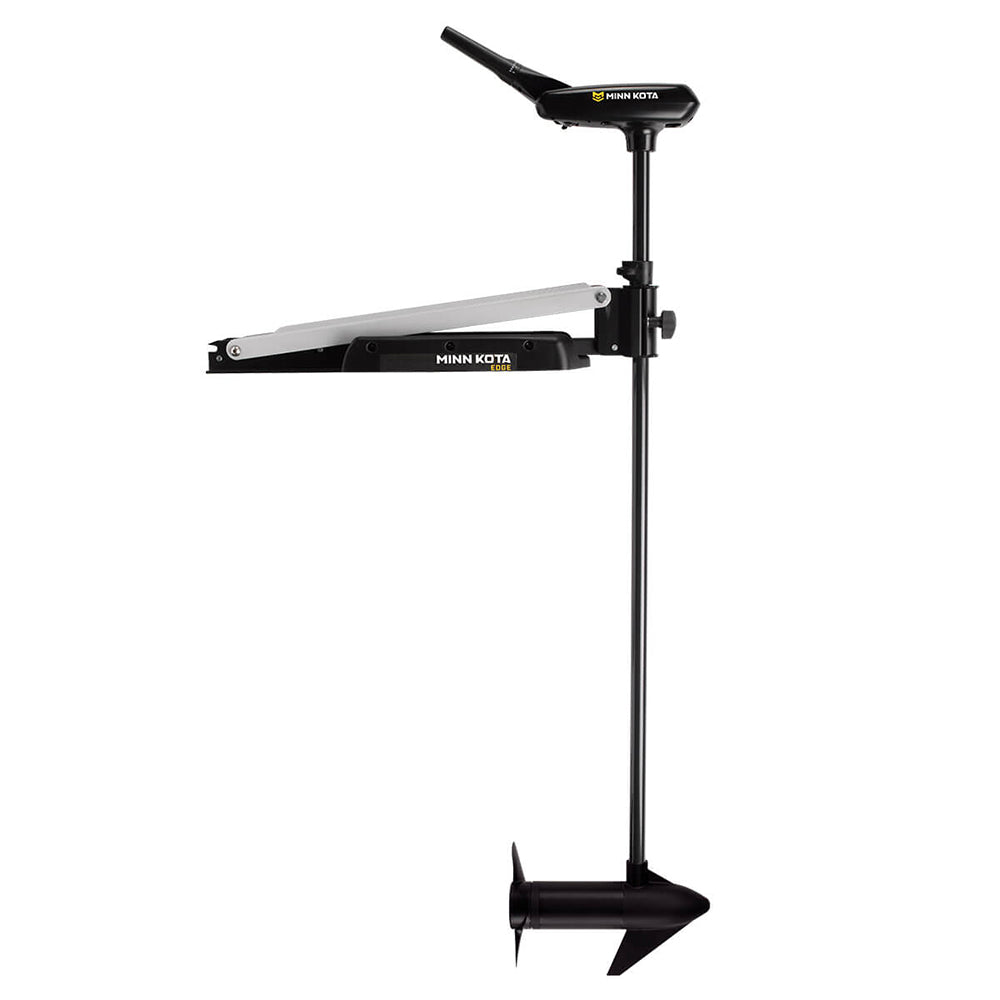

Minn Kota Edge 55 - Hand Control - 12V-55lb-52"

Don't be misled by its size. Edge's compact mount is made from durable, anodized aluminum for strength. With a sturdy Latch & Door mount and a tough composite head, this motor is ideal for small boats and big adventures on the water.

Features:

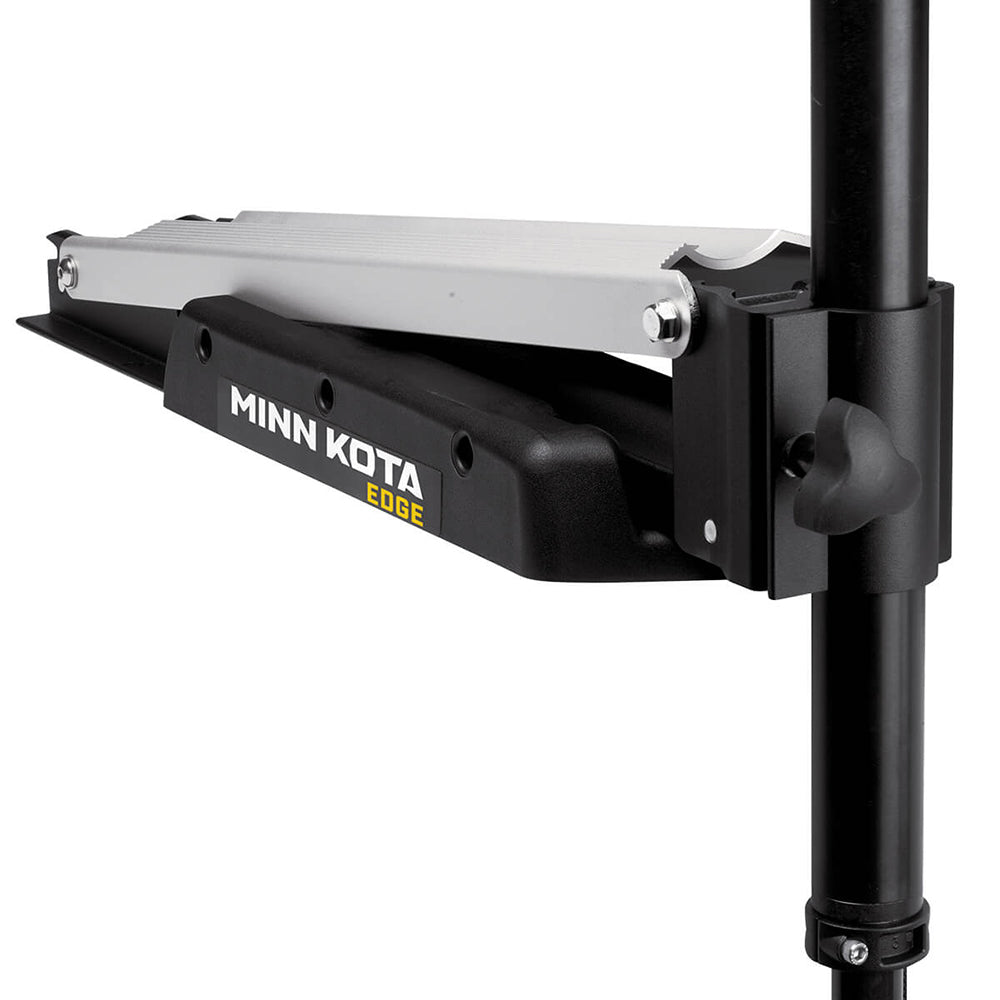

Latch & Door Bracket: This bracket provides a secure hold for your trolling motor and allows for easy removal at the end of the day.

5-Speed Settings: Choose from five speed options to find the perfect speed for trolling.

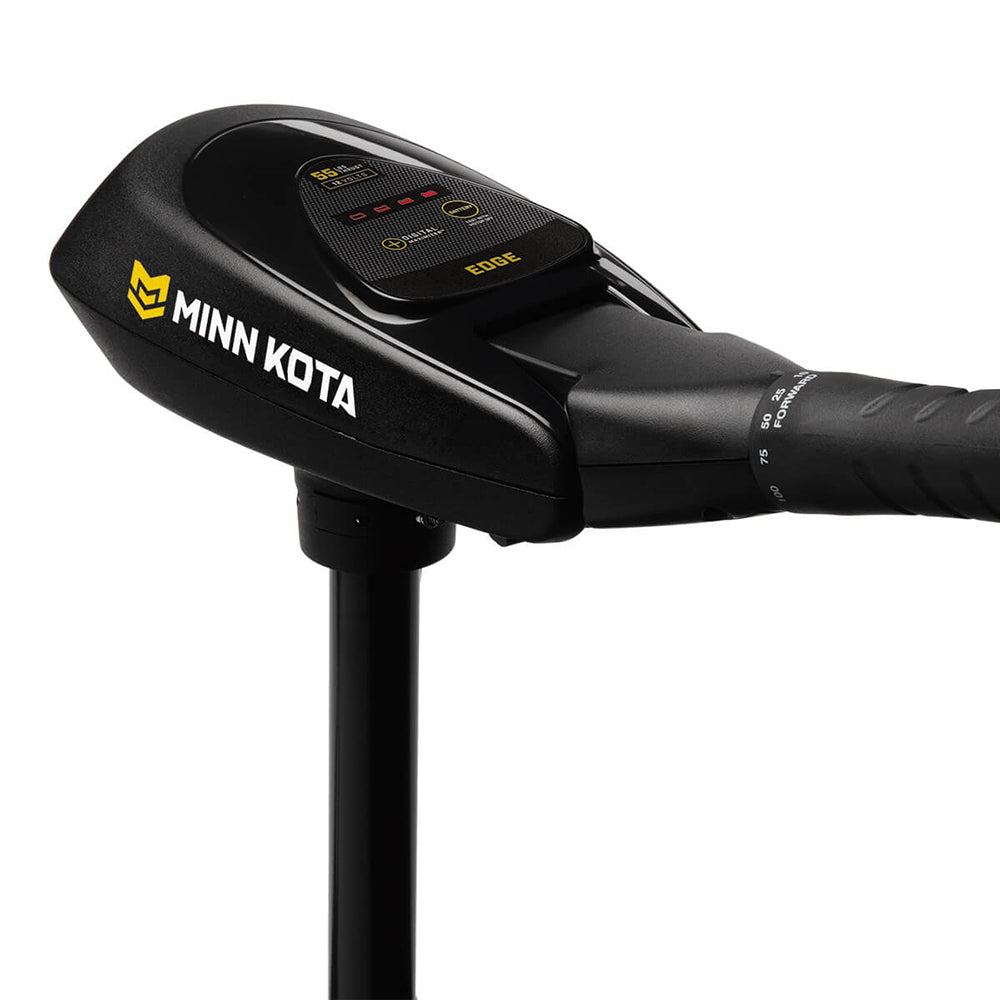

Directional Indicator: An easy-to-read directional indicator is built into the top of the trolling motor head on Edge foot control models.

Power Prop: Designed for 3-1/4" motor diameters, this prop offers extra power to move through thick vegetation. It includes a prop pin, nut, and washer.

Indestructible Composite Shaft — Guaranteed for Life: The core of your Minn Kota trolling motor is an indestructible composite shaft, exclusive to Minn Kota and guaranteed for life.

Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend the motor's life and remains quiet.

  • What's Included: Edge 55 lb. 52" hand-control motor, MKP-32 Prop, Hold Down Strap and Mounting Hardware

Specifications:

  • Control: Hand
  • Volts: 12
  • Max Thrust: 55 lbs.
  • Shaft Length: 52"
  • Speed Control: 5-Speed
  • Max. Amp Draw: 50
  • Prop: Power Prop (MKP-32)

Specifications:

  • Autopilot: No

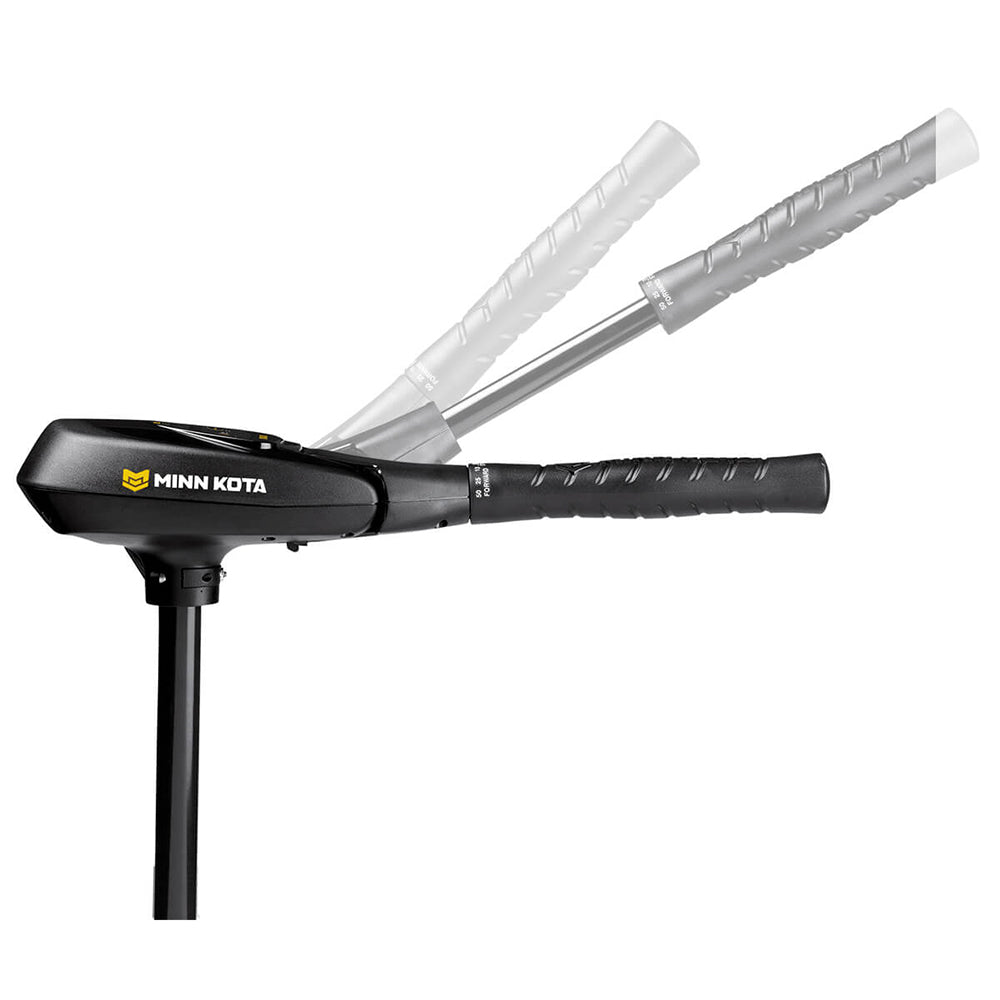

  • Control Type: Tilt Twist Tiller
  • Included Propeller: MKP-32
  • Mounting Style: Bow
  • Salt Water/Fresh Water: Fresh
  • Series: Edge
  • Shaft Length (Inches): 52"
  • Thrust (Pounds): 55 lbs
  • Built-In Transducer: No
  • Voltage - Input Range (Volts): 12v
  • Box Dimensions: 9"H x 20"W x 67"L WT: 45 lbs
  • UPC: 029402047802


Owner's Manual (pdf)
