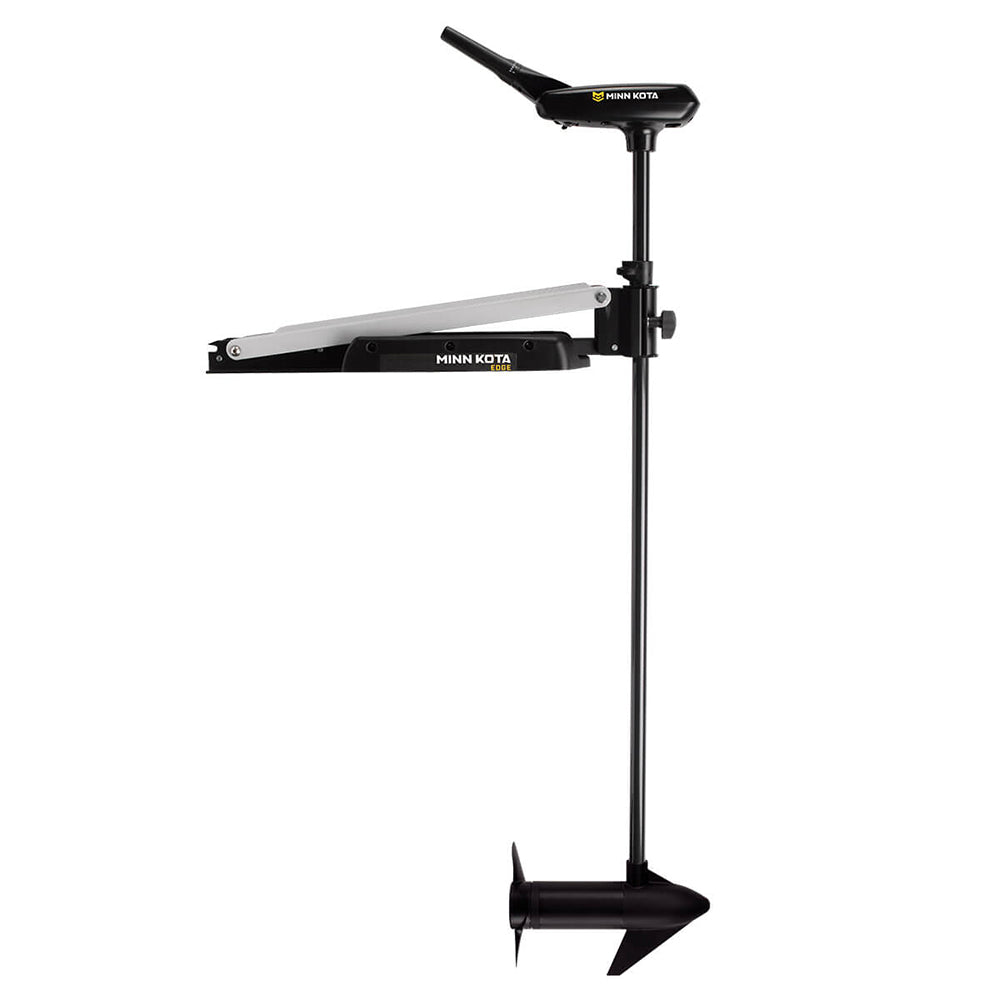

Minn Kota Edge 45 - Hand Control - 12V-45lb-45" [1355935]

Edge 45 - Hand Control - 12V-45lb-45"

Don't be misled by its size. Edge's compact mount is made from durable, anodized aluminum for strength. With a sturdy Latch & Door mount and a tough composite head, this motor is ideal for small boats and big adventures on the water.

Features:

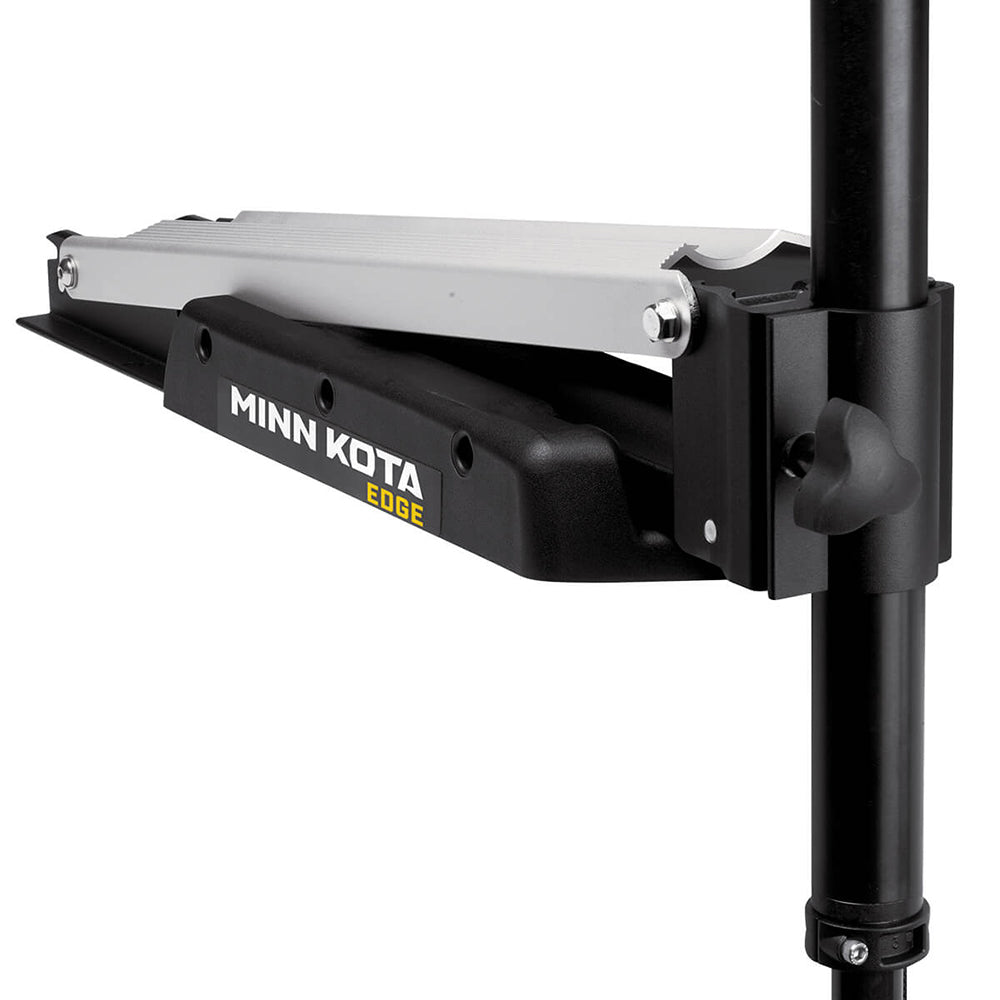

• Latch & Door Bracket: This bracket provides a secure hold for your trolling motor and allows for easy removal at the end of the day.

  5-Speed Settings: Choose from five speed options to find the perfect speed for trolling.

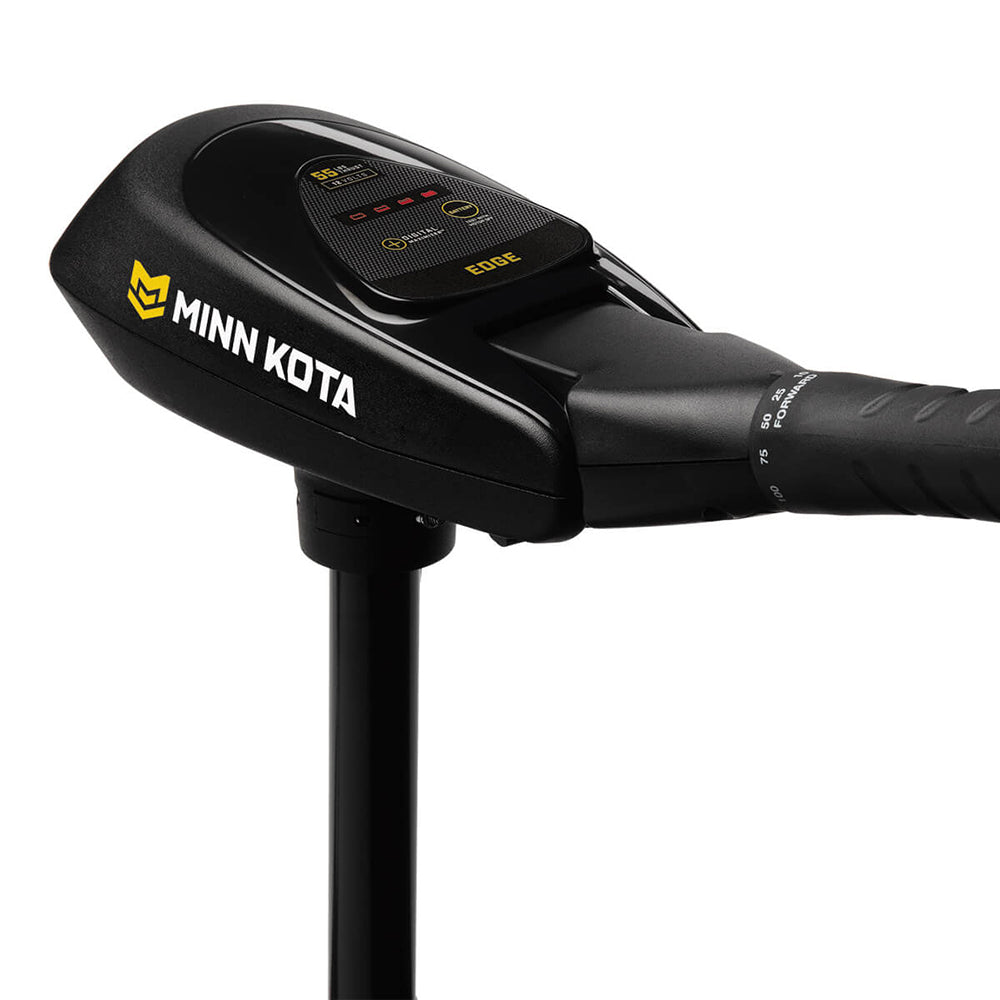

  Directional Indicator: An easy-to-read directional indicator is built into the top of the trolling motor head on Edge foot control models.

  Power Prop: Designed for 3-1/4" motor diameters, this prop offers extra power to move through thick vegetation. It includes a prop pin, nut, and washer.

  Indestructible Composite Shaft — Guaranteed for Life: The core of your Minn Kota trolling motor is an indestructible composite shaft, exclusive to Minn Kota and guaranteed for life.

  Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend the motor's life and remains quiet.

  What's Included: Edge 45 lb. 45" hand-control trolling motor, Hold Down Strap, MKP-2 Prop and Hardware for installation.

Specifications:

• Control: Hand
• Volts: 12
• Max Thrust: 45 lbs.
• Shaft Length: 45"
• Speed Control: 5-Speed
• Max. Amp Draw: 42
• Prop: Power Prop (MKP-2)

Specifications:

• Autopilot: No
• Control Type: Tilt Twist Tiller
• Included Propeller: MKP-2
• Mounting Style: Bow
• Salt Water/Fresh Water: Fresh
• Series: Edge
• Shaft Length (Inches): 45"
• Thrust (Pounds): 45 lbs
• Built-In Transducer: No
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 9"H x 20"W x 63"L WT: 41 lbs
• UPC: 029402047796

Owner's Manual (pdf)
