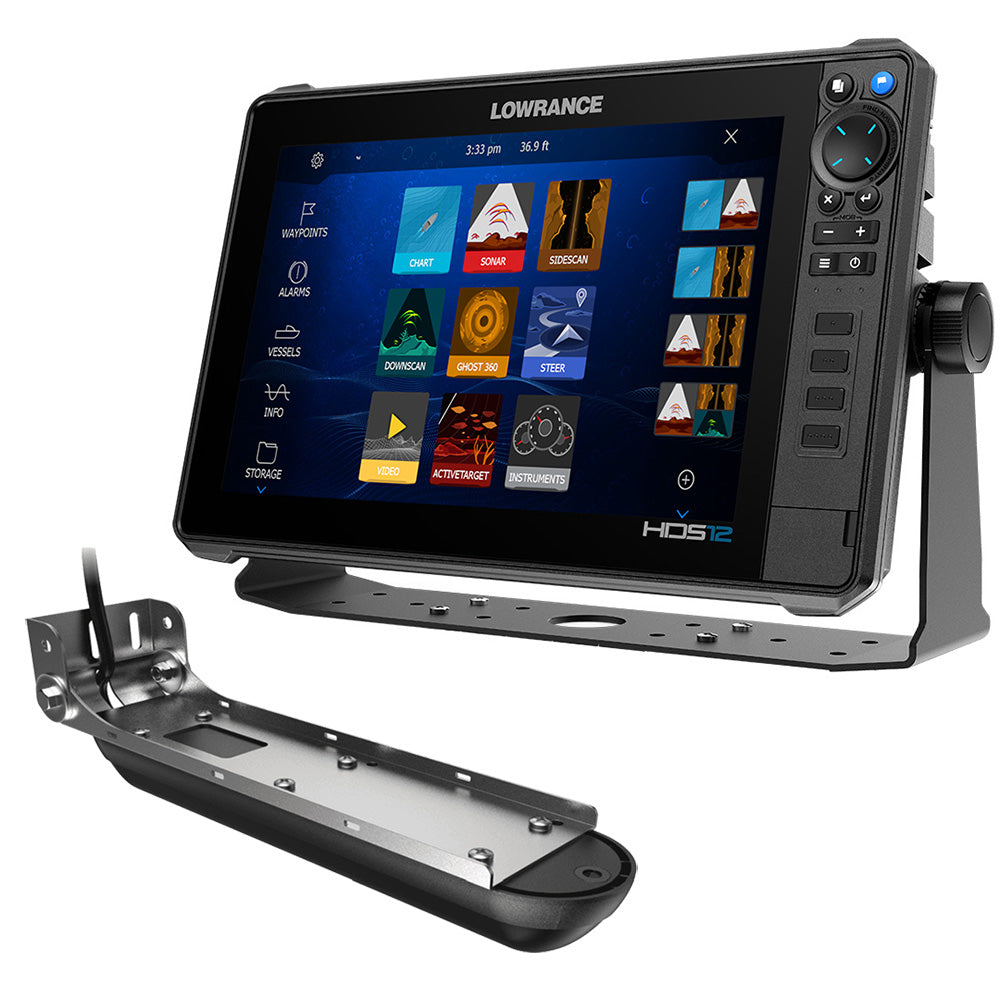

Lowrance HDS PRO 12 12-inch Fishfinder/Chartplotter with C-MAP DISCOVER OnBoard and Active Imaging 3-in-1 Transom Mount Transducer [000-16521-001]

Product Introduction

Find fish and the structure they hold on a 12-inch SolarMAX HD touchscreen. The Lowrance HDS PRO 12 comes preloaded with C-MAP DISCOVER OnBoard charts (1-foot contours on 19,000+ US lakes and 9,400+ Canadian lakes) and includes the Active Imaging 3-in-1 Transom Mount Transducer with CHIRP, SideScan and DownScan Imaging. It is also ActiveTarget 2 live sonar ready.

Why This Product?

This bundle gives you the display, the maps and a transom mount imaging transducer in one purchase, so you can get on the water with CHIRP, SideScan and DownScan views. The HDS PRO 12 has a 1280 x 800 display, NMEA 2000, wireless and Bluetooth connectivity, and smartphone notifications, and it controls Power-Pole anchors, a Ghost Trolling Motor, autopilot and Lowrance Outboard Pilot from the touchscreen.

What Can I Use This Product For?

• Find fishing spots: use preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US lakes and 9,400+ Canadian lakes.
• See structure and cover: use the included transducer's CHIRP, SideScan and DownScan Imaging to find rockpiles, standing timber, weedbeds, ditches and drop-offs.
• Pick out fish targets: use FishReveal Smart Target view to tell fish from structure on DownScan images.
• Add live sonar: the HDS PRO 12 is ActiveTarget 2 live sonar ready. The live sonar module and transducer are not included.
• Map in real time: use C-MAP Genesis Live for real-time mapping.
• Control your boat's gear: run Power-Pole anchors, a Ghost Trolling Motor, autopilot and Lowrance Outboard Pilot from the touchscreen.

What's Included

• Lowrance HDS PRO fishfinder/chartplotter (12-inch display)
• C-MAP DISCOVER OnBoard charts (preloaded on the unit)
• Active Imaging 3-in-1 Transom Mount Transducer (000-14489-001)

Key Product Benefits

• 12-inch SolarMAX HD touchscreen, viewable at extreme angles and through polarized lenses
• 1280 x 800 display resolution
• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US lakes and 9,400+ Canadian lakes
• Active Imaging 3-in-1 Transom Mount Transducer included
• CHIRP, SideScan and DownScan Imaging
• FishReveal Smart Target view
• ActiveTarget 2 live sonar ready
• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
• NMEA 2000, wireless and Bluetooth connectivity, plus smartphone notifications
• Large programmable keys

Who Is This Product For?

• Anglers who want a 12-inch display, maps and an imaging transducer in one purchase.
• Anglers who fish US and Canadian lakes and want preloaded 1-foot contour charts.
• Anglers who plan to add ActiveTarget 2 live sonar later.
• Boaters who want to control Power-Pole anchors, a Ghost Trolling Motor or autopilot from one display.

Why Buy From Us?

The right fishfinder depends on what comes in the box, so we list exactly what is included, along with the part numbers for the bundle and the transducer. Check the details against your boat, then add the HDS PRO 12 to your cart and start planning your next trip.

Product Details

Model and Mapping

• Model: Lowrance HDS PRO 12 with Preloaded C-MAP DISCOVER OnBoard and Active Imaging 3-in-1 Transom Mount Transducer (Part No. 000-16521-001)
• Screen size: 12"
• Display: SolarMAX HD touchscreen, pure white LED backlight
• Resolution: 1280 x 800
• Viewing angles: 80° top/bottom, 80° left/right
• Touchscreen: Yes
• Cartography brand: C-MAP
• Preloaded maps: C-MAP DISCOVER OnBoard (AMER models), 1-foot contours on 19,000+ US lakes and 9,400+ Canadian lakes
• Real-time mapping: C-MAP Genesis Live
• Internal storage: 8.0 GB
• Data capacity: 3,000 waypoints, 100 routes and 100 trails with up to 10,000 points per trail
• GPS: 16 channels, 10 Hz update rate

Transducer

• Transducer included: Yes
• Included transducer: Active Imaging 3-in-1 Transom Mount Transducer (000-14489-001)
• Output: traditional, SideScan imaging, DownScan imaging and temperature
• Frequencies: traditional 200 kHz; CHIRP 83 kHz (medium) and 200 kHz (high); SideScan 455 kHz and 800 kHz
• Maximum depth: traditional 305 m (1,000 ft); DownScan 91 m (300 ft); SideScan 91 m (300 ft) side range at 455 kHz
• Operating speed: traditional 48 knots (55 mph); DownScan and SideScan 9 knots (10 mph)
• Cable length: 7.6 m (25 ft)
• Connector: 9-pin
• Mounting options: transom, flush step and jackplate
• Also listed as compatible with: Lowrance HDS LIVE, HDS Carbon, Elite Ti2, and Simrad NSS evo3 and GO series displays
• FishReveal with SideScan: requires an S3100 module and a compatible transducer
• Live sonar: ActiveTarget 2 live sonar ready (module and transducer not included)

Connectivity

• NMEA 2000: 1 x Micro-C
• Ethernet: 2 x 100 Mbit ports, up to 6 MFDs on a network
• Bluetooth: integrated Bluetooth 4.0 with support for Bluetooth Classic
• WiFi: internal 802.11b/g/n, compatible with the WiFi-1 Module
