Humminbird HELIX 7 GPS CHIRP MSI G4 Model #411930-1

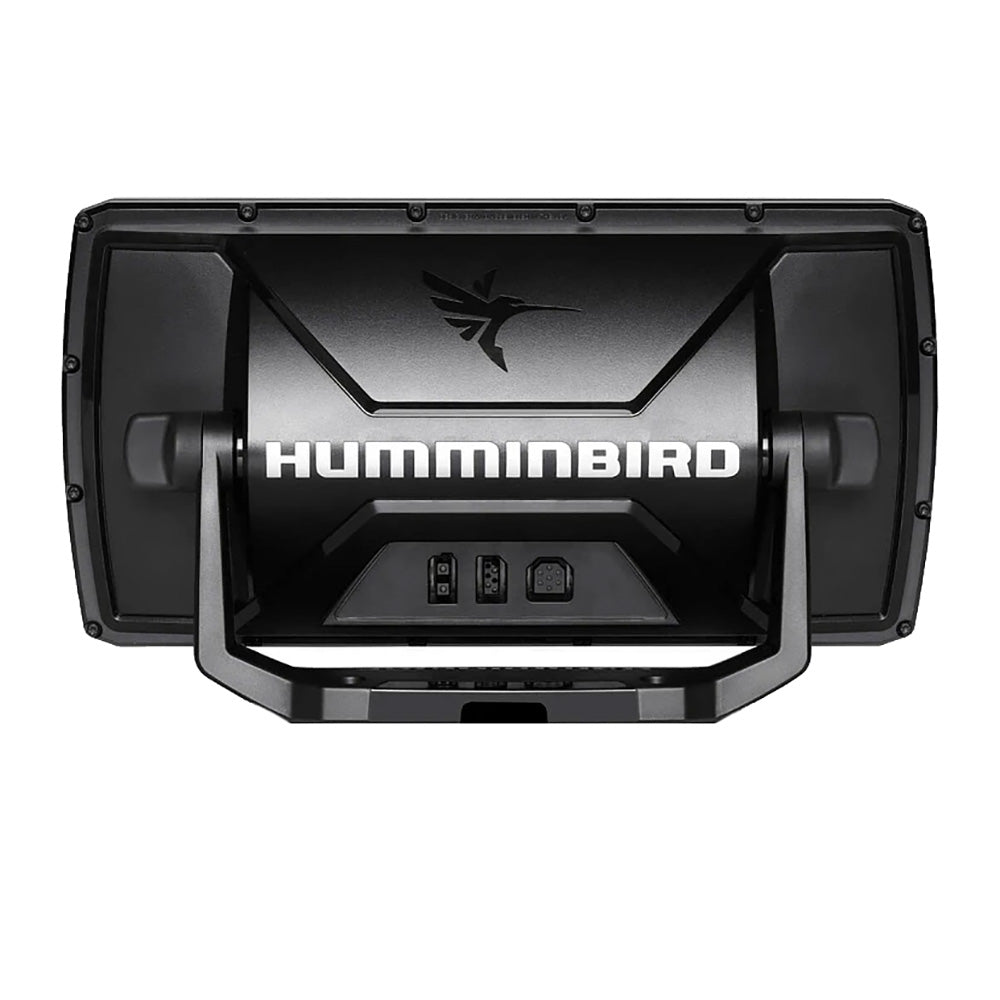

Rear view image of a Humminbird HELIX 7 GPS CHIRP MSI G4 Showing cable connections and mounting bracket.

Humminbird HELIX 7 GPS CHIRP MSI G4 [411930-1]

$728.50
$728.50 $749.99
Product description

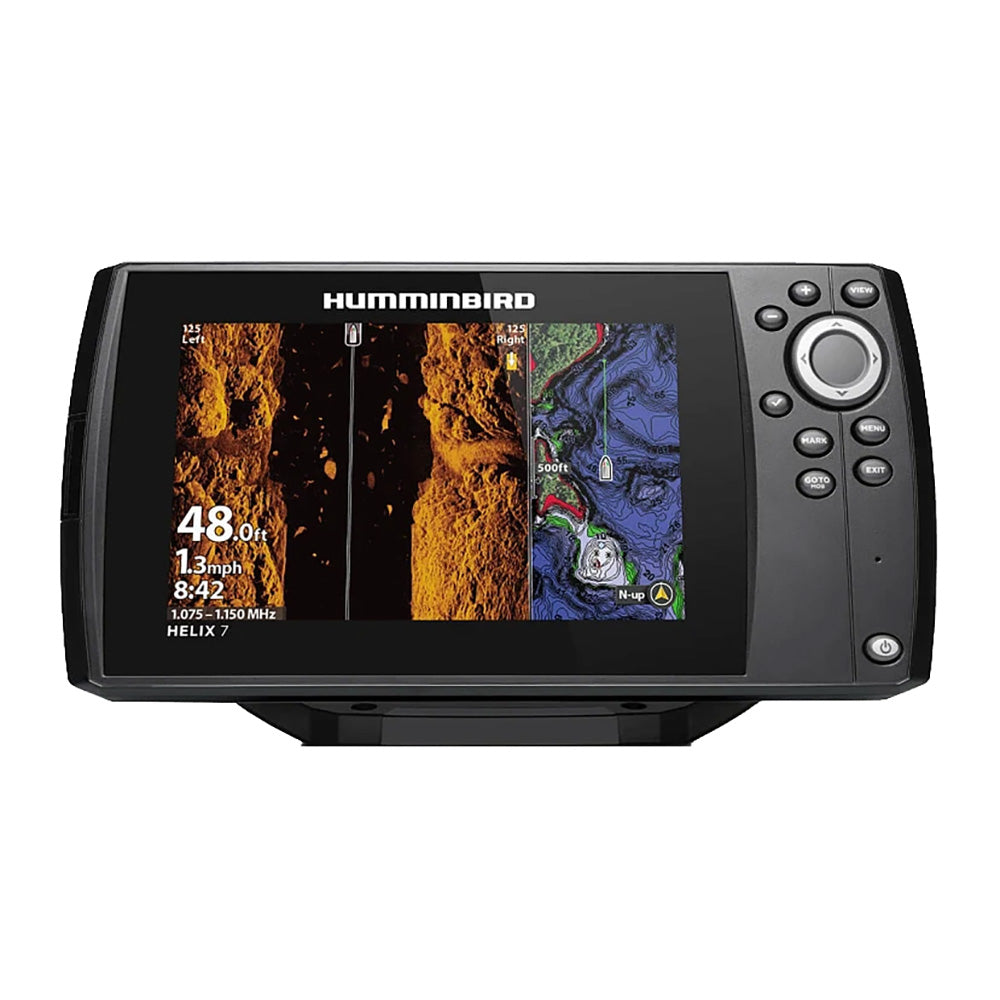

HELIX 7 GPS CHIRP MSI G4

Discover the ultimate fishing experience with the HELIX 7 CHIRP GPS G4N Fish Finder. This advanced device combines state-of-the-art sonar technology with a suite of features designed to give you complete control over your fishing adventures. With a stunning 7" high-definition display, you'll enjoy crystal-clear views of your surroundings, ensuring that no fish slips past your radar.

Key Features:

  • Dual Spectrum CHIRP Sonar: See every detail beneath the surface with highly precise fish arches and a clear view of the underwater environment. Switch between Wide Mode for extensive coverage and Narrow Mode for pinpoint accuracy.

  • MEGA Side Imaging: Experience unparalleled clarity with a view extending up to 125 feet on both sides of your boat. Discover new underwater details with up to three times the resolution of standard Side Imaging sonar.

  • MEGA Down Imaging: Gain deeper insights with enhanced imaging up to 125 feet beneath your boat. This technology delivers 20% to 60% more detail and range compared to previous MEGA Down Imaging sonar models.

  • AutoChart Live: Map your favorite fishing spots in real-time, capturing depth contours, bottom hardness, and vegetation. With eight hours of built-in recording and expandable memory, you'll never miss a detail.

  • Integrated GPS with Humminbird Basemap: Navigate with confidence using detailed maps that showcase underwater terrains and key landmarks. Includes coverage of over 10,000 lakes and coastal areas of the continental U.S.

  • One-Boat Network Compatibility: Seamlessly integrate with other Humminbird and Minn Kota products for enhanced control and connectivity. Unlock exclusive features that make your fishing trips more productive.

  • Ethernet & NMEA 2000 Networking: Build a robust, interconnected fishing system with high-speed Ethernet and NMEA 2000 compatibility, offering comprehensive data on boat performance, weather, and water conditions.

  • Bluetooth Connectivity: Manage your fishing experience directly from the screen with wireless control of compatible devices, software updates, and smartphone notifications.

    Why Choose the HELIX 7 CHIRP GPS G4N?

    The HELIX 7 CHIRP GPS G4N is not just a fish finder—it's a complete fishing system that empowers you with the tools to succeed on the water. Whether you're a professional angler or a weekend warrior, its combination of cutting-edge technology, user-friendly interface, and seamless connectivity makes it the ideal choice for anyone serious about fishing.

    In The Box: Power cable, gimbal mounting bracket, Control head, all necessary mounting hardware and transom-mount transducer.

    Warranty: Enjoy peace of mind with a 1-Year Limited Warranty.

Specifications:

  • Display Size - Diagonal: 7"
  • Display Pixel Matrix: 1024H x 600V
  • Transducer Included: XNT 9 HW MSI 150 T
  • Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot
  • Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging
  • Memory Card Slot: Single Micro SD
  • Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
  • Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
  • Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
  • CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
  • Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
  • Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer)
  • CHIRP - Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz)
  • Depth-Down Imaging: 75 ft (MEGA), 400 ft (455 kHz)
  • Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
  • Interface: Keypad Control
  • Power Draw: 800 mA
  • Power Input: 10.8-20 VDC
  • Power Output Peak-to-Peak: 4000 Watts
  • Power Output RMS: 500 Watts
  • Screen Snap Shot: Included
  • Sonar Recording: Included
  • Mount-Standard: Gimbal
  • Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D
  • Mount-Optional: In-Dash Mounting Kit
  • Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D
  • Transducer Mount Location: Transom
  • GPS Chartplotting: Included
  • GPS Receiver: Internal
  • GPS Trackplotting: Included
  • Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000
  • 360 Imaging Compatibility: No
  • MEGA Live Compatibility: No
  • Humminbird Basemap: Included
  • LakeMaster Compatibility: Yes
  • CoastMaster Compatibility: Yes
  • Navionics Gold/HotMaps Compatibility: Yes
  • Navionics Platinum+ Compatibility: Yes
  • Platinum Compatibility: Yes
  • Minn Kota i-Pilot Link Compatibility: No
  • Minn Kota Talon Shallow Water Anchor Compatibility: No
  • Radar Compatibility: No
  • 5-Port Ethernet Switch Compatibility: No
  • AIS Compatibility: Optional
  • Autopilot Compatibility: Yes
  • Heading Sensor GPS Compatibility: Yes
  • Target Separation: 2.5"
  • Interference Rejection: 6 Modes
  • Noise Rejection: 10 Steps
  • Upgradable Software: Yes
  • View Preset Keys: No
  • X-Press Menu System: Yes
  • Custom Digital Readout: Yes
  • Custom View Selections: No
  • Display Colors Grayscale: 16-Bit
  • Display Type: Color TFT
  • Speed: Included
  • Temperature: Built In
  • Temperature Alarm: Yes
  • Temperature Graph: Yes
  • HDMI Compatible: No
  • Warranty: One-Year Warranty

Specifications:

  • Cartography Brand: Humminbird/Navionics
  • Included Transducer: XNT-9-HW-MSI-150-T
  • Screen Size: 7"
  • Touchscreen: No
  • Transducer Included: Yes
  • Box Dimensions: 5"H x 14"W x 17"L WT: 5.2 lbs
  • UPC: 082324058295


Owner's Manual (pdf)
