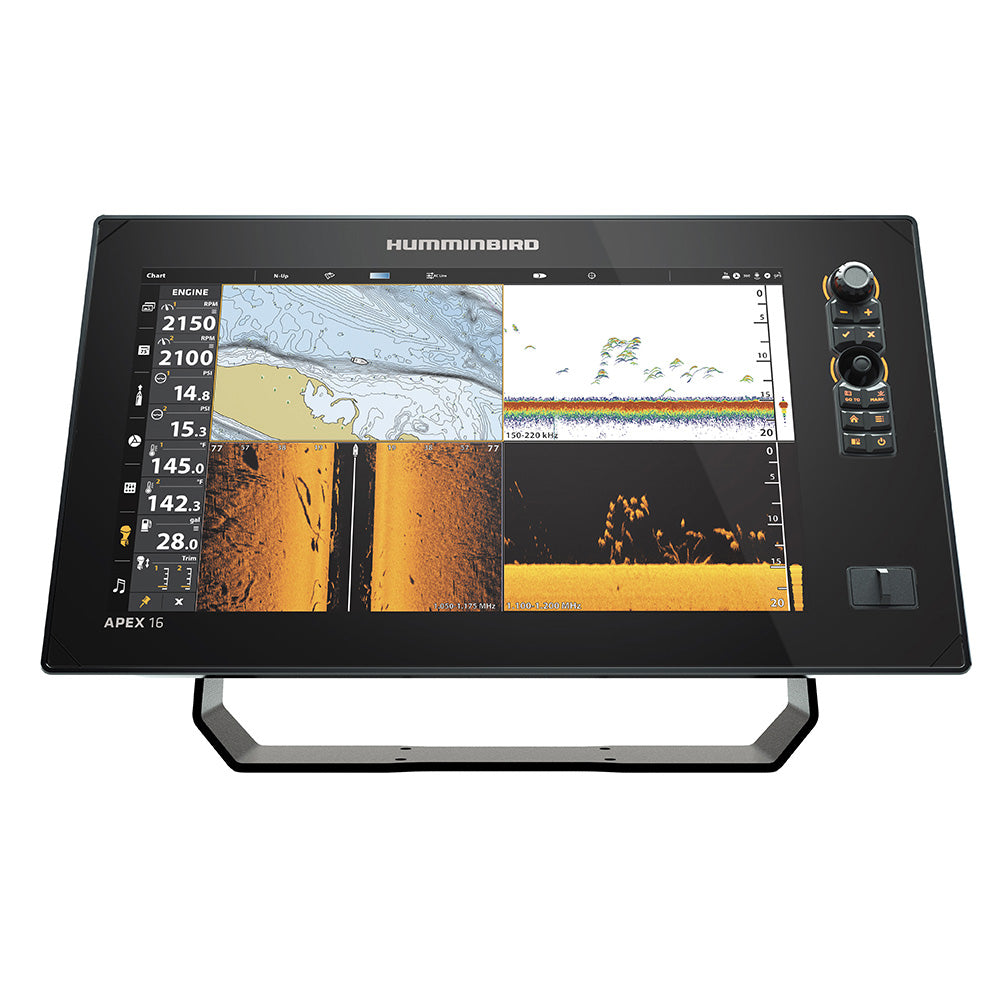

Humminbird APEX 16 VX MSI+ 16-inch Chartplotter/Fishfinder with Transom Mount Transducer [411500-1VX]

Product Introduction

Run your sonar, charts and boat controls from one large touchscreen. The Humminbird APEX 16 VX MSI+ is a 16-inch class chartplotter/fishfinder with a 15.6" Full HD touchscreen (1920 x 1080), MEGA Imaging+ and Dual Spectrum CHIRP sonar, and a transom mount transducer in the box. It also networks with NMEA 2000, HDMI In/Out, WiFi, Bluetooth and the One-Boat Network.

Why This Product?

This is a complete package: the control head, transom mount transducer, mounting hardware, power cable and gimbal mounting bracket come together. The APEX has dual sonar ports, a dedicated port for 2D CHIRP transducers up to 2kW, dual Ethernet ports and a built-in Humminbird basemap, and it is covered by a 2-year limited warranty.

What Can I Use This Product For?

• See under and beside the boat: use MEGA Side Imaging+ and MEGA Down Imaging+, with views up to 250' under and out to either side of your boat.
• Read 2D sonar: use Dual Spectrum CHIRP sonar for 2D views.
• Add a 2D CHIRP transducer: use the dedicated sonar port for accessory 2D CHIRP transducers up to 2kW.
• Navigate and find spots: use the internal GPS and Humminbird basemap, which includes charts of more than 10,000 lakes plus coastal coverage for the continental U.S.
• Upgrade your charts: add optional Humminbird LakeMaster and CoastMaster charts, or compatible Navionics charts (sold separately).
• Map as you go: use AutoChart Live to map depth contours, bottom hardness and vegetation, with 8 hours of built-in recording time.
• Control your boat: use the One-Boat Network with compatible Minn Kota and Cannon products, and Bluetooth with compatible Talon and Raptor shallow water anchors and Cannon Optimum downriggers.
• Connect video and accessories: use independent HDMI In and HDMI Out ports for cameras, video sources and accessory displays.

What's Included

• APEX 16 VX MSI+ control head
• Transom mount transducer (XM-14-HW-MSI-T)
• Mounting hardware
• Power cable
• Gimbal mounting bracket

Key Product Benefits

• 16-inch class display with a 15.6" Full HD touchscreen (1920 x 1080) and Cross Touch interface (touchscreen or keypad)
• Dual core processor
• MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar
• Views up to 250' under and out to either side of the boat with MEGA Imaging+
• Dual sonar ports, including a dedicated port for 2D CHIRP transducers up to 2kW
• Internal GPS and Humminbird basemap with more than 10,000 lakes plus continental U.S. coastal coverage
• Compatible with LakeMaster, CoastMaster and Navionics charts (optional, sold separately)
• AutoChart Live with 8 hours of built-in recording time, plus AutoChart Zero Line SD card compatibility
• One-Boat Network compatible with Minn Kota and Cannon products

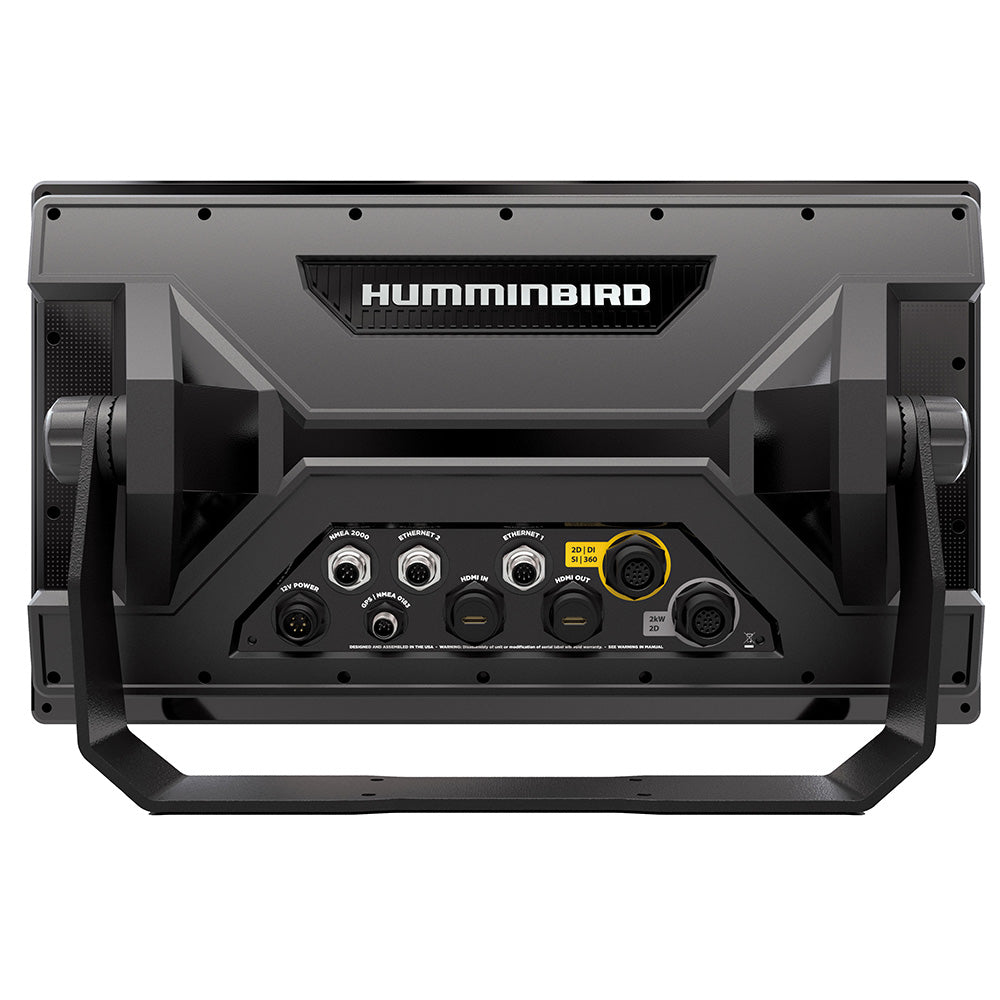

• Dual Ethernet ports, independent HDMI In and Out, WiFi, Bluetooth and NMEA 2000
• Compatible with CZone Contact 6, Contact 6 Plus and digital switching devices
• 2-year limited warranty

Who Is This Product For?

• Anglers who want a large 16-inch class display with a transducer included.
• Boaters who want to network Minn Kota, Cannon, Talon or Raptor accessories with their display.
• Anglers who want to map their own spots with AutoChart Live.
• Owners who plan to add a 2D CHIRP transducer, cameras or a second display.

Why Buy From Us?

A display this size is a big purchase, so we list what is in the box, the transducer model and the part number in one place. Check them against your boat and helm space, then add the APEX 16 VX MSI+ to your cart.

Product Details

Model and Display

• Model: Humminbird APEX 16 VX MSI+ Chartplotter/Fishfinder with Transom Mount Transducer (Part No. 411500-1VX)
• Screen size: 16" class (15.6" Full HD touchscreen)
• Resolution: 1920 x 1080
• Touchscreen: Yes, Cross Touch interface with touchscreen or keypad control
• Processor: dual core

Sonar and Transducer

• Transducer included: Yes
• Included transducer: XM-14-HW-MSI-T (transom mount)
• Imaging: MEGA Side Imaging+ and MEGA Down Imaging+, views up to 250' under and out to either side
• CHIRP: Dual Spectrum CHIRP sonar
• Sonar ports: dual sonar ports, including a dedicated port for accessory 2D CHIRP transducers up to 2kW

Charts and Mapping

• Cartography brand: Humminbird / Navionics
• GPS: internal
• Built-in charts: Humminbird basemap with more than 10,000 lakes plus coastal coverage for the continental U.S.
• Optional charts: Humminbird LakeMaster and CoastMaster, and compatible Navionics charts (sold separately)
• AutoChart Live: 8 hours of built-in recording time, compatible with AutoChart Zero Line SD cards

Connectivity and Networking

• NMEA 2000: built in
• Ethernet: dual ports
• HDMI: independent HDMI In and HDMI Out
• WiFi: supported
• Bluetooth: supported, with smartphone notifications and wireless software updates through the Humminbird FishSmart app
• One-Boat Network: compatible with Minn Kota and Cannon products
• Accessories: compatible Talon and Raptor shallow water anchors, Cannon Optimum downriggers, Minn Kota i-Pilot Link and Humminbird CHIRP Radar (sold separately)
• CZone: compatible with Contact 6, Contact 6 Plus and digital switching devices

Shipping, Warranty and Identification

• Warranty: 2-year limited warranty
• Box dimensions: 12"H x 15"W x 22"L
• Box weight: 22 lbs
• UPC: 082324061615

Frequently Asked Questions

What is the Humminbird APEX 16 VX MSI+?

It is a 16-inch class chartplotter/fishfinder with a 15.6" Full HD touchscreen, MEGA Imaging+ and Dual Spectrum CHIRP sonar, and a transom mount transducer included.

Is a transducer included?

Yes. It includes the transom mount transducer, model XM-14-HW-MSI-T.

What is included in the box?

The control head, transom mount transducer, mounting hardware, power cable and gimbal mounting bracket.

What maps are built in?

An internal Humminbird basemap with charts of more than 10,000 lakes plus coastal coverage for the continental U.S. Optional LakeMaster, CoastMaster and compatible Navionics charts are sold separately.

Can I add a 2D CHIRP transducer?

Yes. The APEX has a dedicated sonar port for accessory 2D CHIRP transducers up to 2kW.

What is AutoChart Live?

It lets you create real-time maps of your fishing spots, mapping depth contours, bottom hardness and vegetation as you drive your boat. It has 8 hours of built-in recording time.

What can it connect to?

NMEA 2000, dual Ethernet, HDMI In and Out, WiFi and Bluetooth. It is compatible with the One-Boat Network for Minn Kota and Cannon products, and with Talon and Raptor shallow water anchors over Bluetooth.

Does it have a warranty?

Yes. It comes with a 2-year limited warranty.

Is there a larger APEX?

Yes. The Humminbird APEX 19 VX MSI+ with transom mount transducer is part number 411240-1VX.

What is the part number?

The part number is 411500-1VX. The included transducer is XM-14-HW-MSI-T.
