Garmin TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin [010-12378-20]
Garmin TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin [010-12378-20]

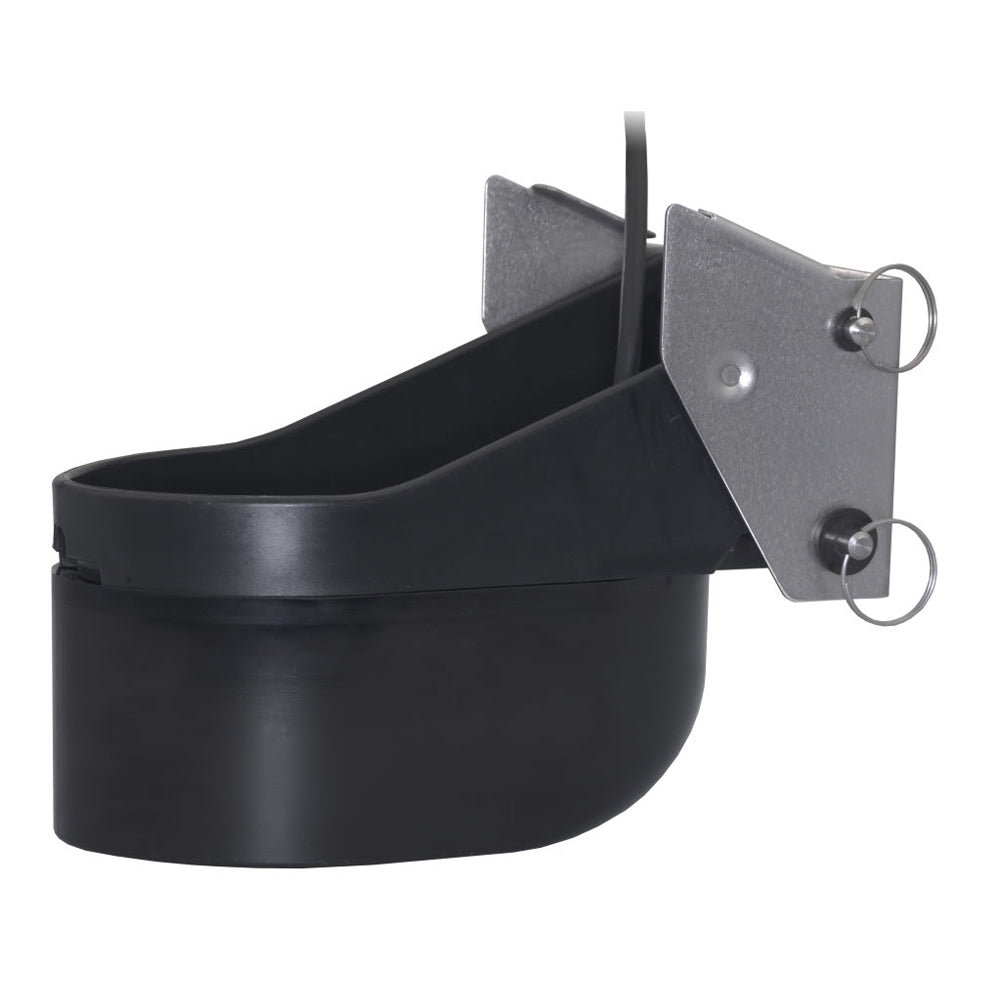

TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin
Garmin's plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.
The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GPSMAPĀ® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv
- GSDā¢ 25 Premium Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 12
- Mounting Style: Transom
- Imagining: Standard
- Chirp: Low/High
- Cable Length (Feet): 33'
- Box Dimensions: 8"H x 11"W x 12"L WT: 11.5 lbs
- UPC: 753759142407
Owner's Manual (pdf)
Brochure (pdf)
