Garmin GPSMAP 8610xsv 10-inch Combo GPS/Fishfinder with Garmin Navionics+ (GN+) [010-02091-51]

Product Introduction

Run your whole helm from one 10-inch screen. The Garmin GPSMAP 8610xsv combines a full HD IPS touchscreen, preloaded Garmin Navionics+ charts and built-in support for Garmin sonar, so you can navigate, fish and manage your boat's electronics without juggling separate displays. Add the transducer you want (sold separately), connect your radar, autopilot, cameras and instruments, and control it all from one chartplotter.

Why This Product?

Get one system that handles charts, sonar and boat networking together. You get preloaded Navionics+ coastal charts and inland mapping with Auto Guidance+, support for CHIRP, ClearVü, SideVü, Ultra High-Definition, Panoptix and LiveScope sonar, and SmartMode station controls that put docking, cruising, fishing and anchoring presets a touch away. Connect with NMEA 2000 and the Garmin Marine Network, and the GPSMAP 8610xsv becomes the control center for the rest of your electronics.

What Can I Use This Product For?

• Get where you're going with confidence: navigate with preloaded Navionics+ offshore, coastal and inland charts for the U.S. and Canada, with Auto Guidance+ for route planning (planning purposes only; it does not replace safe navigation practices).

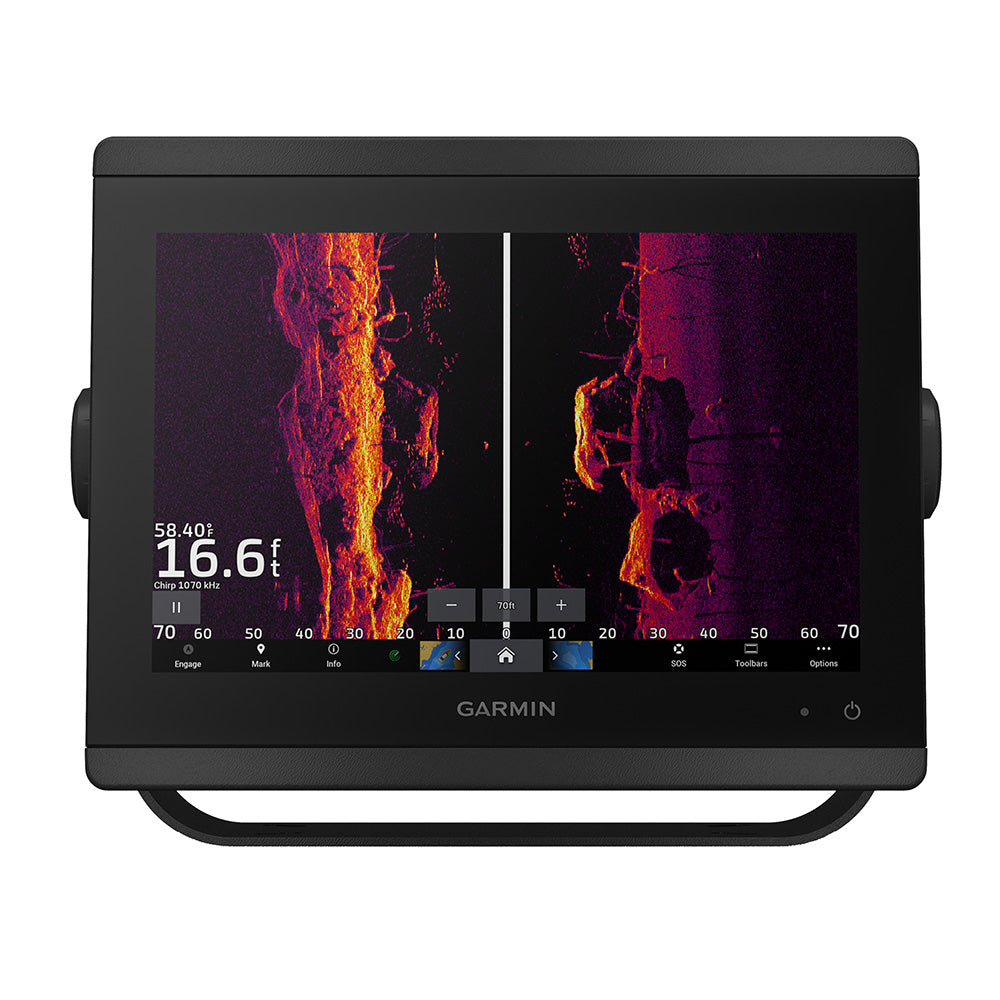

• See what's under and around the boat: use built-in support for CHIRP traditional, CHIRP ClearVü and CHIRP SideVü scanning sonar, Ultra High-Definition scanning sonar with no black box required, and Panoptix and LiveScope sonar (transducers sold separately).
• Switch tasks in one touch: use SmartMode station controls for docking, cruising, fishing, anchoring and more.
• Build one connected helm: network sonar, radar, autopilots, instruments, cameras and multimedia over NMEA 2000 and the Garmin Marine Network, and share them across multiple screens.
• Monitor your engines at a glance: see RPM, fuel flow, temperature, trim and more for up to four compatible Mercury engines with the SmartCraft Connect gateway (sold separately).
• Plan trips and update maps from your phone: use Wi-Fi and the free ActiveCaptain app for OneChart, smart notifications, Garmin Quickdraw Community data and map updates.
• Race with sailing tools: use built-in Garmin SailAssist features for data, displays and prerace guidance.

Key Product Benefits

• 10-inch full HD in-plane switching (IPS) touchscreen for wide viewing angles, designed for sunlight readability, including with polarized sunglasses
• Preloaded Garmin Navionics+ offshore, coastal and inland charts for the U.S. and Canada, with Auto Guidance+
• Built-in support for Garmin CHIRP, ClearVü, SideVü, Ultra High-Definition, Panoptix and LiveScope sonar

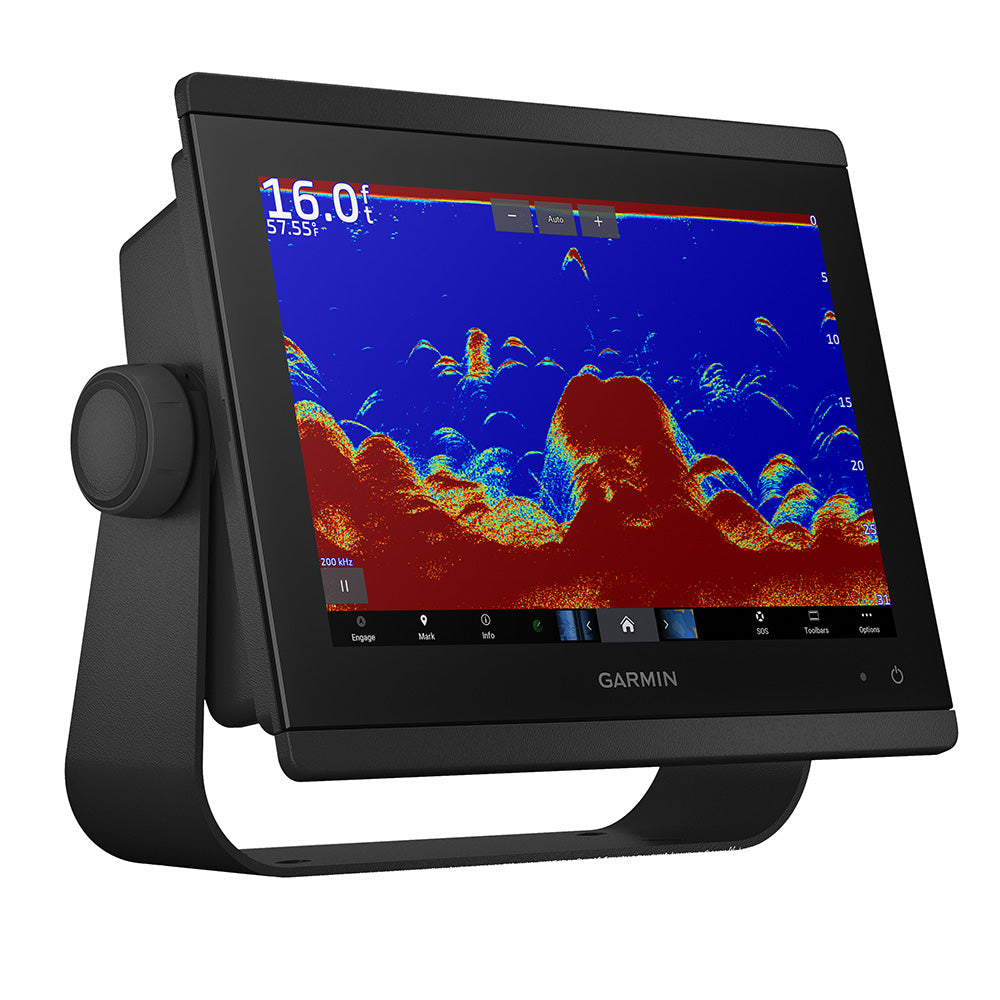

• Dual-channel 1 kW traditional CHIRP sonar support
• SmartMode station controls and OneHelm connection to many compatible third-party devices
• NMEA 2000 networking and Garmin Marine Network support
• Install multiple displays edge-to-edge for a glass-helm look, or mount flush
• ANT and Wi-Fi connectivity for compatible quatix smartwatches, the gWind Wireless 2 wind sensor and the ActiveCaptain app
• Dual microSD card slots on the back of the unit
• Bail mount, flush mount kit and protective cover included

Who Is This Product For?

• Anglers who want charts and sonar on one large screen and plan to use their own transducer.
• Boat owners building a networked helm with radar, autopilot, cameras and instruments.
• Boaters with Mercury engines who want engine data on the chartplotter.
• Sailors who want built-in SailAssist features on their chartplotter.
• Owners of multi-display helms who want a matching glass-helm look.

Choose Your Own Transducer

The GPSMAP 8610xsv does not include a transducer. It has built-in support for Garmin sonar, so you can add the CHIRP, ClearVü, SideVü, Ultra High-Definition, Panoptix or LiveScope transducer that fits your boat and your fishing (sold separately).

Why Buy From Us?

When you're building a helm, you need to know exactly what you're getting. We list the model, part number, what's in the box, what's not included and the main specifications in one place, so you can check it against your boat and your other electronics before you order. Review the details below, then add the GPSMAP 8610xsv to your cart and put your whole helm on one screen.

Product Details

Model and Maps

• Model: Garmin GPSMAP 8610xsv Combo GPS/Fishfinder, GN+ (Part No. 010-02091-51)
• Screen size: 10"
• Touchscreen: Yes
• Display type: full HD in-plane switching (IPS)
• Cartography brand: Garmin Navionics+
• Preloaded charts: Garmin Navionics+ offshore, coastal and inland water charts for the U.S. and Canada, with Auto Guidance+
• Optional map content: Garmin Navionics Vision+ premium maps
• Transducer included: No
• UPC: 753759285364
• Box dimensions: 9" H x 12" W x 17" L; shipping weight 12.75 lbs

What's in the Box

• Chartplotter
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable

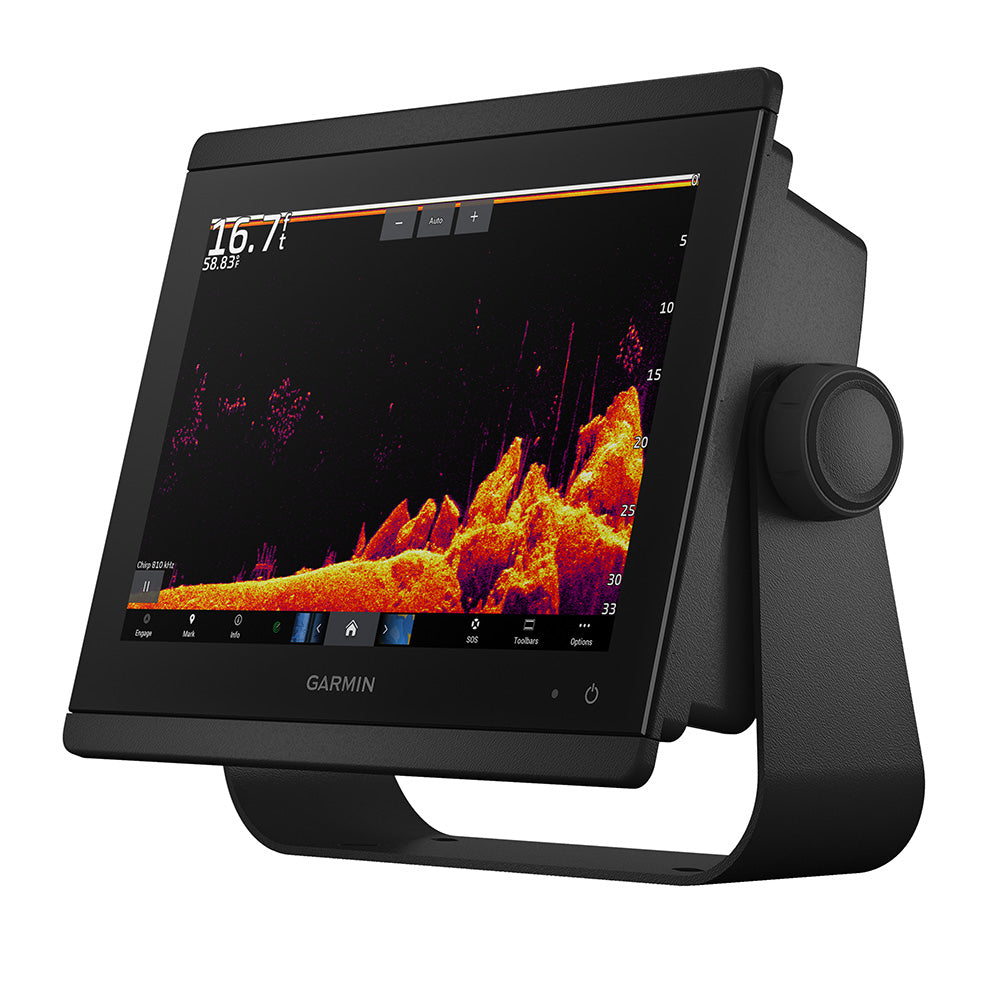

• Bail mount with knobs (8610 and 8612 series)
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation

Sonar Support (transducers sold separately)

• Traditional sonar: dual-channel 1 kW CHIRP
• Scanning sonar: CHIRP ClearVü and CHIRP SideVü
• Ultra High-Definition scanning sonar: supported, no black box required
• Panoptix and LiveScope: supported, along with a wide range of other transducers

Connectivity and Control

• Networking: NMEA 2000 and Garmin Marine Network
• Wireless: Wi-Fi networking and ANT connectivity
• Compatible devices: quatix smartwatches, gWind Wireless 2 wind sensor, many third-party devices through OneHelm
• Engine data: up to four compatible Mercury engines through the SmartCraft Connect gateway (sold separately)
• App: free ActiveCaptain smartphone app for OneChart, smart notifications, Garmin Quickdraw Community data and map updates
• Station controls: SmartMode presets for docking, cruising, fishing, anchoring and more
• Sailing: built-in Garmin SailAssist features

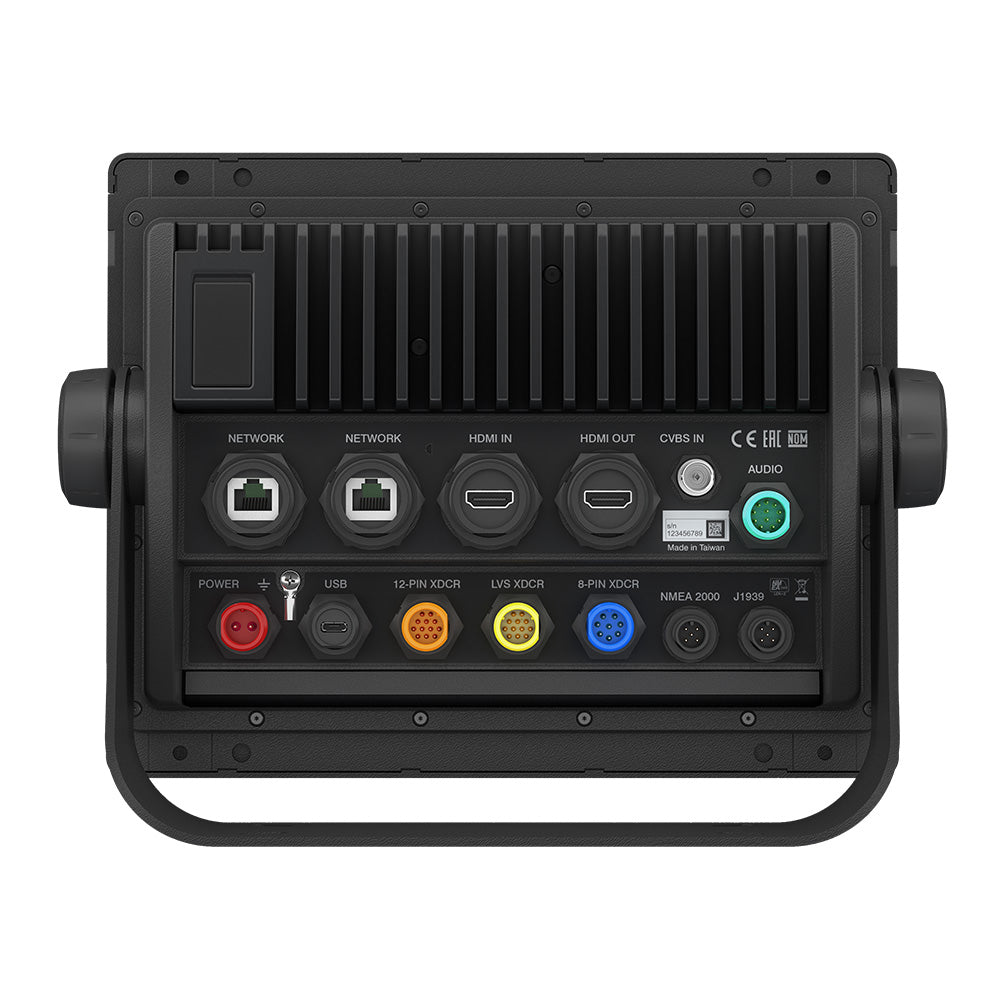

• Memory: dual microSD card slots on the back of the unit, for ActiveCaptain and cartography cards
• Mounting: bail or flush; multiple displays can be mounted edge-to-edge

California Proposition 65 Notice

This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. More information: P65Warnings.ca.gov.

Frequently Asked Questions

What is the Garmin GPSMAP 8610xsv?

It is a 10-inch full HD touchscreen combo GPS/fishfinder chartplotter with preloaded Garmin Navionics+ charts, built-in support for Garmin sonar and networking for a full marine electronics system.

Is a transducer included?

No. A transducer is not included. The unit has built-in support for Garmin sonar, so you can add the transducer you need (sold separately).

What comes in the box?

The chartplotter, a power cable, an NMEA 2000 T-connector and drop cable, a bail mount with knobs, a flush mount kit, a protective cover, trim piece snap covers and documentation.

What charts are preloaded?

Garmin Navionics+ offshore, coastal and inland water charts for the U.S. and Canada, with Auto Guidance+. Optional Garmin Navionics Vision+ premium map content is also supported. Auto Guidance+ is for planning purposes only and does not replace safe navigation practices.

Which sonar types does it support?

It supports dual-channel 1 kW traditional CHIRP, CHIRP ClearVü, CHIRP SideVü, Ultra High-Definition scanning sonar (no black box required), Panoptix and LiveScope sonar. Transducers are sold separately.

Can I connect my other electronics?

Yes. NMEA 2000 networking and the Garmin Marine Network let you connect radar, autopilots, cameras, instruments and multimedia, and OneHelm connects many compatible third-party devices.

Can it show engine data?

Yes, for up to four compatible Mercury engines using the SmartCraft Connect gateway, which is sold separately. It shows RPM, fuel flow, temperature, trim and more.

How can I mount it, and can I install more than one?

It can be mounted with the bail mount or flush. Multiple displays can be flat mounted edge-to-edge for a glass-helm look.
