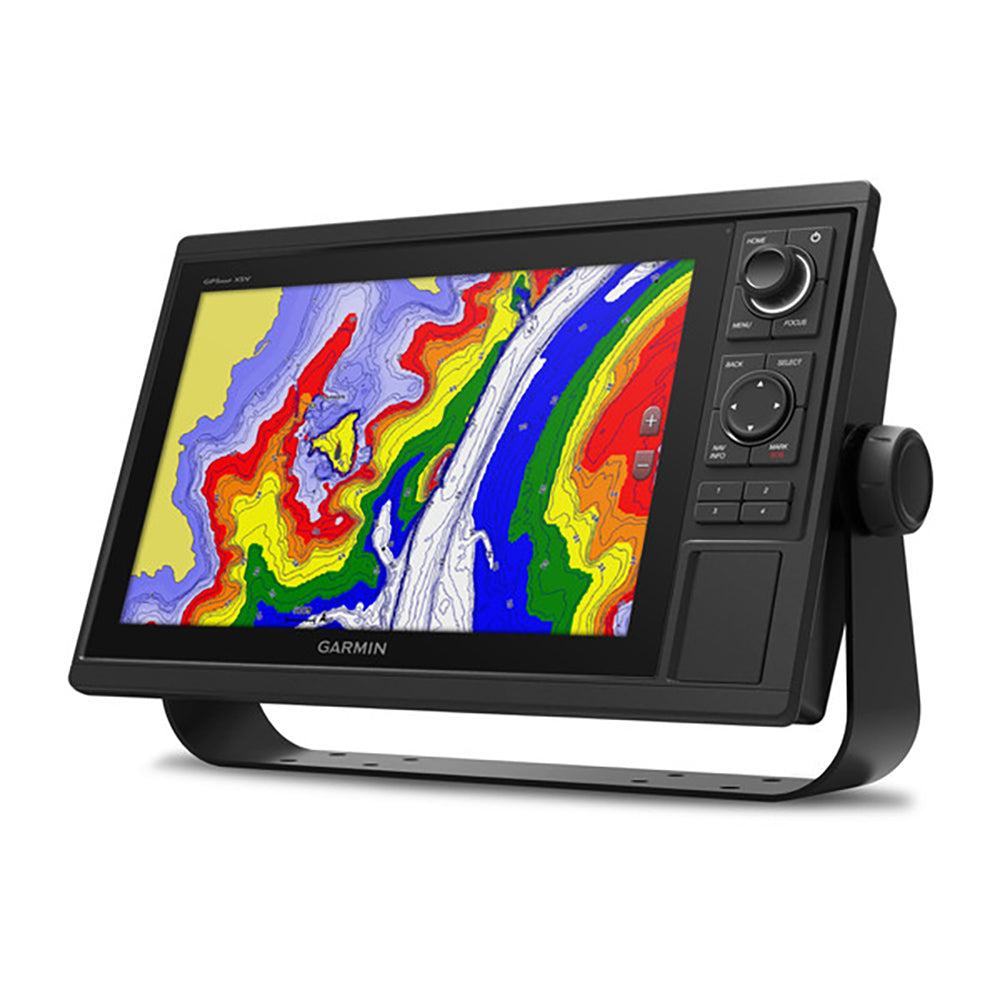

Garmin GPSMAP 1022xsv Keyed Networking Combo Worldwide - No Transducer [010-01740-02]

Regular price $1,499.99
Sale price $1,499.99 Regular price
Product description

GPSMAP® 1022xsv Keyed Networking Combo Worldwide - No Transducer

10-inch Chartplotter/Sonar Combo Is All-in-1 Solution

  • 10-inch color display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Built-in single channel CHIRP sonar, CHIRP ClearVĂĽ and CHIRP SideVĂĽ scanning sonar and Panoptix™ support (transducers sold separately)
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support

Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1022xsv keyed combo. It has built-in support for Garmin CHIRP sonar, CHIRP ClearVĂĽ and CHIRP SideVĂĽ. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVĂĽ and CHIRP SideVĂĽ scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance¹ and other great features.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

In The Box

  • GPSMAP 1022xsv chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • 8-pin transducer to 12-pin sounder adapter cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation

Connections

  • Garmin Marine Network™ Ports: 2
  • Transducer Ports: 1 (12 Pin)
  • NMEA 2000® Port: 1
  • NMEA 0183 Input Ports: 1
  • NMEA 0183 Output Ports: 1
  • Video Input Ports:  1 BNC
  • Video Output Ports: No
  • Wireless Connectivity: Yes

ÂąAuto Guidance is for planning purposes only and does not replace safe navigation operations.

iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Cartography Brand: Garmin
  • Included Transducer: Not Included
  • Screen Size: 10"
  • Touchscreen: No
  • Transducer Included: No
  • Box Dimensions: 9"H x 12"W x 17"L WT: 9.79 lbs
  • UPC: 753759168315

Quick Guide (pdf)
Owner's Manual (pdf)
