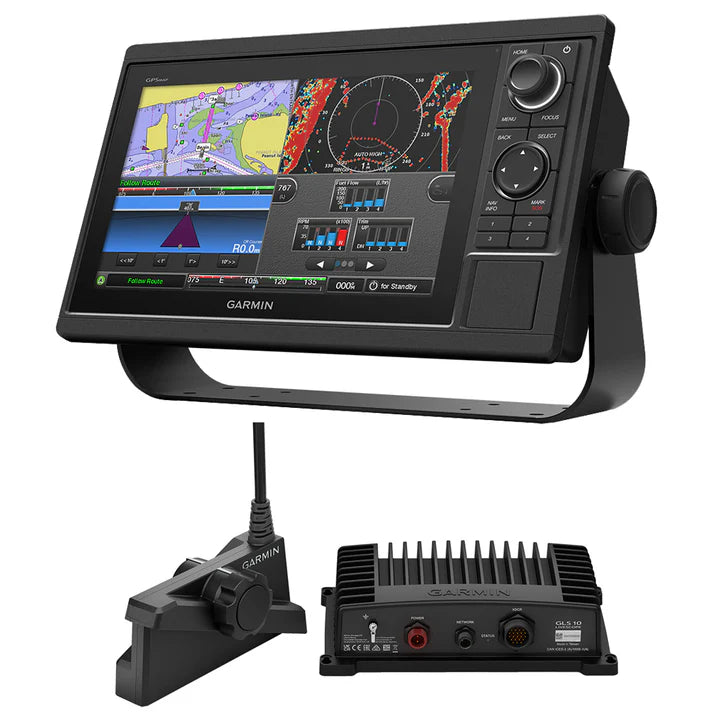

Garmin GPSMAP 1022 LiveScope Plus Bundle w/LVS34 Transducer

Garmin GPSMAP 1022 LiveScope Plus Bundle w/LVS34 Transducer [010-01740-00/LVS34]

Regular price $2,999.99
Sale price $2,999.99 Regular price
Product description

Garmin GPSMAP 1022 LiveScope Plus Bundle w/LVS34 Transducer [010-01740-00/LVS34]

GPSMAP® 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution.


  • 10-inch color display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
  • Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features

For Cruisers and Sailors

The GPSMAP 1022 is perfect for cruisers, sailors, and racers, offering a comprehensive 10-inch chartplotter with an easy-to-use keypad, programmable keys, and a multifunction control knob. Its bright, large screen ensures clear visibility.

Network sharing shares IP cameras, sonar, user datamaps, radar, and Panoptix™ sonar across all your devices with the Garmin Marine Network.

FUSION-Link, weather, NMEA 0183 and NMEA 2000 connectivity, AIS, digital switching and VHF is also included.

Connected Boating App

Access the free ActiveCaptain™ app using the built in Wifi, allowing you to manage your on the water experience from almost anywhere. This app connects your mobile device to your Garmin chartplotter, providing access to charts, maps, and the boating community. It also offers smart notifications, trip planning, and automatic syncing with your chartplotter, along with software update notifications.

Fast GPS and GLONASS Position heading is updated 10 times per second using the built-in 10 Hz GPS and GLONASS receiver, delivering on-screen movement smoothly. This feature allows quick and easy waypoint marking, with capacity for up to 5,000 waypoints.

 Enhanced Mapping Options

 Expandable memory for additional maps is offered via Two SD™ card slots, BlueChart® g2 Vision® HD, BlueChart® g2 HD, LakeVü HD Ultra and LakeVü HD are also compatible. Features to enhance your sailing performance, the GPSMAP 1022 includes a pre-race guidance page with a virtual starting line, laylines, race timer, and other data fields.

Available features also entail enriched course-over-ground lines, heading, wind data and GPX Waypoints Transfer. Transferring waypoints, tracks, or routes from another GPS device is simple using GPX software formatting, whether from another manufacturer’s product or a Garmin handheld device.

In The Box:

  • GPSMAP 1022 chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation


  • Garmin Marine Network™ Ports: 2
  • NMEA 2000® Port: 1
  • NMEA 0183 Input Ports: 1
  • NMEA 0183 Output Ports: 1
  • Video Input Ports:  1 BNC
  • Video Output Ports: None
  • Wireless Connectivity: Yes

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

LiveScope™ Plus System with GLS 10™ & LVS34 Transducer

Introducing the pinnacle of LiveScope technology, the LiveScope Plus System sets a new standard with enhanced resolution, reduced noise, crystal-clear images, and superior target separation.


 🔍 Improved Clarity: Enjoy enhanced screen clarity, transducer sensitivity, and target separation, allowing you to see images with unparalleled precision.

🌊 Sharper Imaging: Scan your surroundings with sharper images, reduced noise, and fewer sonar artifacts, ensuring a clearer view of fish and underwater structures.

 📈 Easy Upgrade: Simply replace your existing LiveScope System black box (GLS™ 10 sonar module) with a new transducer to enjoy the upgraded features.

🎨 Vivid Color Palettes: Select from seven vibrant color options, including Aqua, Caribbean, Lava, and more, for maximum contrast and clarity in your images.

👀 Real-Time Sonar: Experience real-time sonar technology, ensuring that your live images are incredibly accurate and up-to-date.

🌟 Image Stabilization: Built-in stabilization technology keeps the sonar image steady on your compatible chartplotter, even in turbulent waters.

🌈 Forward Mode: Scout ahead of your boat and witness real-time underwater activity, providing valuable insights for your fishing endeavors.

⬇️ Down Mode: Explore live views of the activity directly beneath your boat, allowing you to pinpoint fish and structures with precision.

🔄 Perspective Mode: Gain a unique perspective with a view from above the water, offering a comprehensive understanding of underwater dynamics.

Experience the ultimate in underwater visualization with the LiveScope Plus System, where every detail comes to life with unparalleled clarity and precision.

In The Box:

  • LiveScope GLS 10 sonar black box
  • Panoptix LVS34 transducer
  • Perspective mount
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • 2 meter Garmin Marine Network cable (small connector)
  • Network adapter cable
  • Documentation


  • Cartography Brand: Garmin Navionics+
  • Included Transducer: LVS-34
  • Screen Size: 10"
  • Touchscreen: No
  • Transducer Included: Yes
  • Box Dimensions: 8"H x 10"W x 14"L WT: 19.9 lbs
