Garmin ECHOMAP Ultra 2 16" Chartplotter 162sv w/Worldwide Basemap w/o Transducer [010-03385-00]

Garmin ECHOMAP Ultra 2 16" Chartplotter

Powerful Performance. Pro-Level Clarity. Built for Anglers.

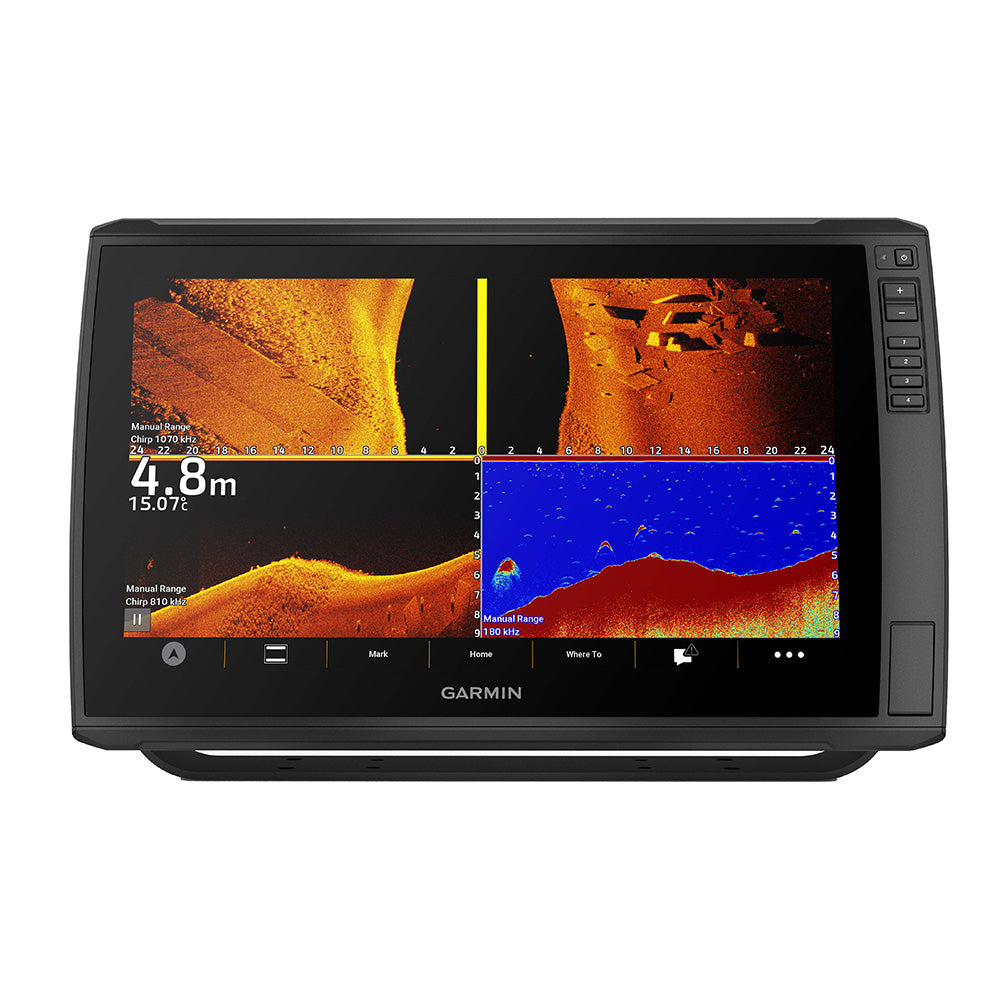

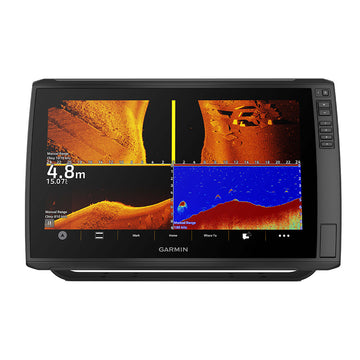

The Garmin ECHOMAP Ultra 2 16" delivers full HD resolution and crisp detail, making it easy to view sonar and navigation even in bright sunlight. Designed for serious anglers, this high-performance chartplotter combines advanced sonar features, smart connectivity, and premium mapping to give you the ultimate edge on the water.

🚤 Top Features:

✅ LiveScope™ Compatible
Supports the full range of Garmin LiveScope live-scanning sonar (transducers sold separately).

✅ Built-In UHD Sonar
Models with the GT56 transducer include CHIRP traditional sonar, plus Ultra High-Definition ClearVü™ and SideVü™ scanning for detailed views below and around your boat.

✅ Preloaded Garmin Navionics+ Maps
Select units come with built-in charts and a 1-year subscription for daily updates, depth shading, and more. Vision+™ upgrade available.

✅ HDMI Output
Connect to a TV or larger screen for big-picture sonar and mapping display.

✅ Voice Control Ready
Use Bluetooth-enabled voice commands to control sonar, trolling motor modes, and more—hands-free.

✅ Vivid Color Palettes
Easily identify fish and structure with high-contrast sonar color options.

✅ Wireless Networking
Share waypoints, sonar, and routes with other ECHOMAP Ultra 2 or UHD2 units on your boat.

✅ Multi-Band GPS
Improved accuracy, even in tough conditions.

✅ NMEA 2000® Compatible
Easily integrate with heading sensors, autopilot systems, and Fusion-Link™ audio.

✅ ActiveCaptain® App Support
Use your smartphone to get updates, record screens, access Quickdraw™ data, and more.

✅ Force® Trolling Motor Integration
Wirelessly control your motor, follow routes, and mark waypoints directly from the screen.

✅ Screen Recording
Capture sonar and mapping data on your phone using the ActiveCaptain app.

Specifications:

• Dimensions: 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
• Weight: 9.5 lbs (4.31 kg)
• Water rating: IPX7
• Touchscreen: Yes
• Display Type: FHD, IPS
• Display Size: 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
• Display resolution: 1920 x 1080 pixels

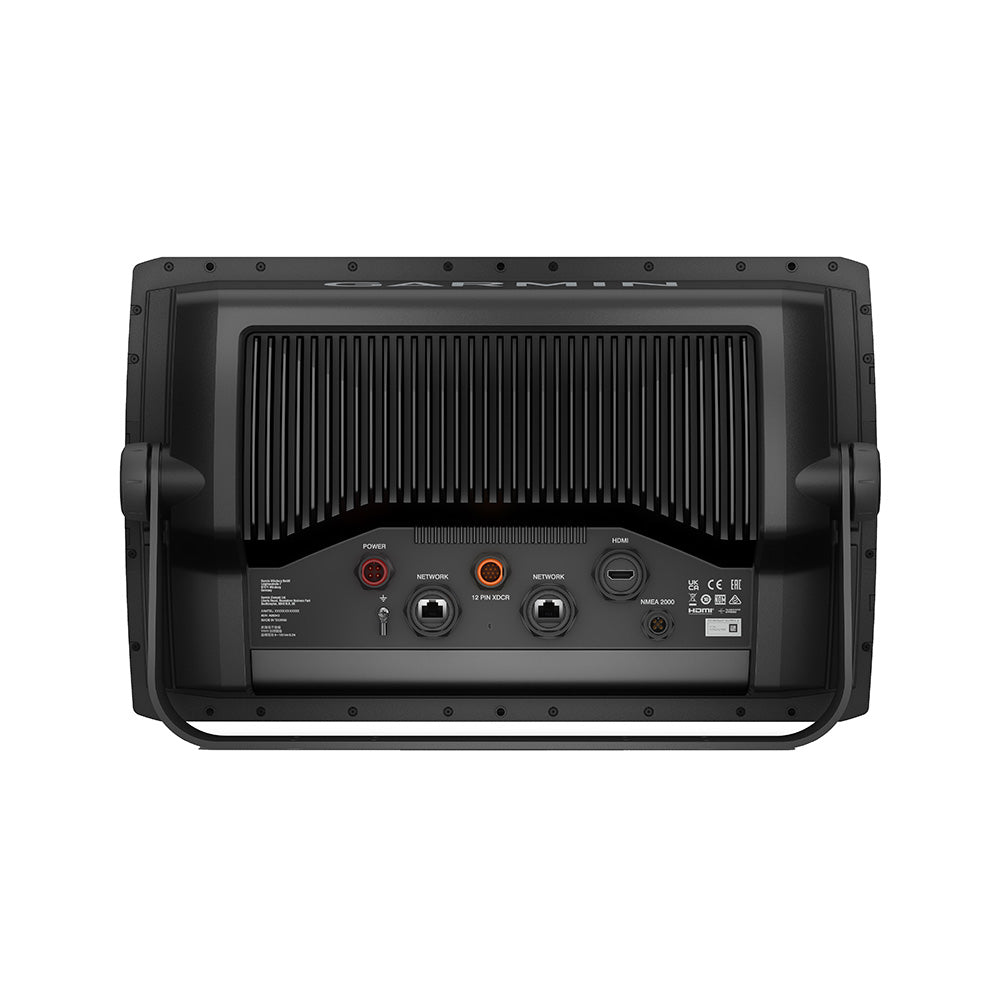

• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist
• Accepts Data Cards: 2 microSD™ cards
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100
• Power Input: 9 to 18 Vdc
• Typical current draw at 12 Vdc: 3.9 A
• Maximum current draw at 12 Vdc: 6.6 A
• Maximum power usage at 10 Vdc: 48 W
• Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz

What's In The Box?

• ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+
• Power cable
• Bail mount with knobs
• Protective sun cover
• Trim caps
• Hardware
• Documentation

1LiveScope™ System sonar transducer sold separately2Via one-to-one unit wireless connection only3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Garmin is under license.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
