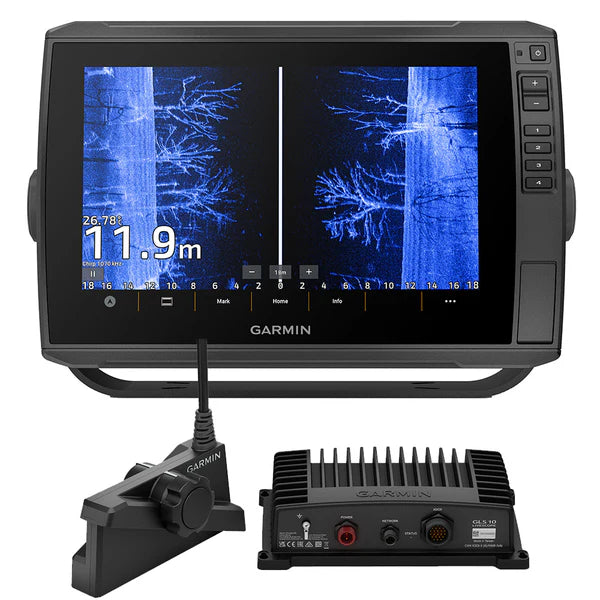

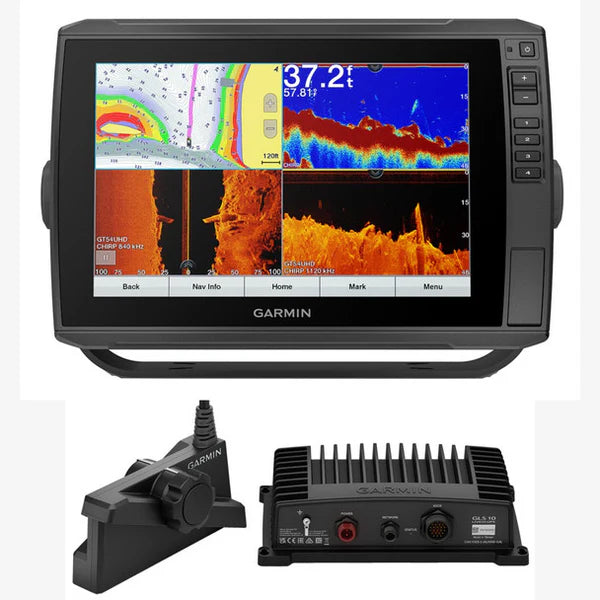

Garmin ECHOMAP Ultra 2 102sv Livescope LVS34 Bundle
Garmin ECHOMAP Ultra 2 102sv Livescope LVS34 Bundle

Garmin ECHOMAP Ultra 2 102sv Livescope LVS34 Bundle [010-02879-00/LIVESCOPE]

Regular price $3,599.99
Sale price $3,599.99 Regular price
Product description


ECHOMAP™ Ultra 2 102sv Livescope LVS34 Bundle

Sunlight-bright touchscreen displays make these chart plotters a dream for fishermen, offering a world of fish-finding capabilities. The transducer bundle enhances the display with Ultra High-Definition scanning sonars and CHIRP traditional sonar.


  • ECHOMAP™ Ultra 2 102sv Preloaded with Worldwide Basemap
  • Easily viewable 10” Touchscreen
  • Wireless Share Sonar, Waypoints, and Routes
  • Record On Screen to Share Fish Catches
  • Enhanced Accuracy Multi-Band GPS

Livescope™ Sonar Support:

  • UHD units are compatible with LiveScope Plus transducers. (transducers sold separately).

Built-in UHD Sonar:

  • Optional models offer a built in GT56 transducer bundled with Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™/SideVü™ sonar for improved images from underneath the water surface.

Vivid Color Palettes:

  • Spot targets and distinguish structures with high-contrast color options.

Premium Map Upgrades:

  •  Provide high-resolution relief shading and satellite imagery, with the optional Garmin Navionics Vision+™ mapping(sold separately).

Wireless Networking:

  • Sonar, waypoints, and routes can be shared wirelessly with any compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chart plotter installed on the boat.

Stay Connected:

  • Multi-Band GPS: Enhanced position accuracy.
  • NMEA 2000® Network Compatibility: Great for connecting to heading sensors, autopilots, Fusion-Link™ audio systems, etc.
  • ActiveCaptain® App: Perform software updates, Garmin Quickdraw™ Community data and screen recordings.
  • Force® Trolling Motor: Navigation to waypoints via wireless connection  and follow routes as well.
  • Quick-Disconnect Bail Mount: Easily install and remove you unit.

In the Box:

  • ECHOMAP Ultra 102sv
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • Hardware
  • Documentation



  • Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
  • Weight: 4.0 lbs (1.8 kg)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPS
  • Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
  • Display Resolution: 1280 x 800 pixels
  • Mounting Options: Bail or flush
  • Input: Touchscreen with Keyed Assist

Maps & Memory:

  • Accepts Data Cards: 2 microSD cards
  • Waypoints: 5000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100


  • GPS: Yes
  • GLONASS: Yes
  • Galileo: Yes
  • BeiDou: Yes
  • Has Built-In Receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

  • Built-In Auto Guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes (see Additional)
  • Tide Tables: Yes (see Additional)

Optional Map Support:

  • BlueChart g3: Yes
  • BlueChart g3 Vision: Yes
  • LakeVü g3: Yes
  • LakeVü g3 Ultra: Yes
  • Garmin Navionics+™: Yes
  • Garmin Navionics+ Vision+™: Yes
  • TOPO 100k: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw Contours: Yes

Chartplotter Features:

  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • ActiveCaptain® Compatible: Yes
  • Sailing Features: Yes

Electrical Features:

  • Power Input: 9 to 18 VDC
  • Typical Current Draw at 12 VDC: 2.5 A
  • Maximum Current Draw at 12 VDC: 5.0 A
  • Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

  • Displays Sonar: Yes
  • Power Output: 600 W
  • Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
  • ClearVü: Built-in 260/455/800/1000/1200 kHz
  • SideVü: Built-in 260/455/800/1000/1200 kHz
  • Panoptix™ Sonar: Yes
  • Livescope: Yes


  • NMEA 2000® Ports: 1
  • Garmin Marine Network Ports: 2 (Large Connector)
  • 12-Pin Transducer Ports: 12-Pin Scanning Sonar
  • ANT+ (Connectivity): Yes
  • Garmin Wi-Fi Network (Local Connection): Yes

Introducing the pinnacle of LiveScope technology, the LiveScope Plus System sets a new standard with enhanced resolution, reduced noise, crystal-clear images, and superior target separation.

LiveScope™ Plus System with GLS 10™ & LVS34 Transducer


 🔍 Improved Clarity: Enjoy enhanced screen clarity, transducer sensitivity, and target separation, allowing you to see images with unparalleled precision.

🌊 Sharper Imaging: Scan your surroundings with sharper images, reduced noise, and fewer sonar artifacts, ensuring a clearer view of fish and underwater structures.

 📈 Easy Upgrade: Simply replace your existing LiveScope System black box (GLS™ 10 sonar module) with a new transducer to enjoy the upgraded features.

🎨 Vivid Color Palettes: Select from seven vibrant color options, including Aqua, Caribbean, Lava, and more, for maximum contrast and clarity in your images.

👀 Real-Time Sonar: Experience real-time sonar technology, ensuring that your live images are incredibly accurate and up-to-date.

🌟 Image Stabilization: Built-in stabilization technology keeps the sonar image steady on your compatible chartplotter, even in turbulent waters.

🌈 Forward Mode: Scout ahead of your boat and witness real-time underwater activity, providing valuable insights for your fishing endeavors.

⬇️ Down Mode: Explore live views of the activity directly beneath your boat, allowing you to pinpoint fish and structures with precision.

🔄 Perspective Mode: Gain a unique perspective with a view from above the water, offering a comprehensive understanding of underwater dynamics.

Experience the ultimate in underwater visualization with the LiveScope Plus System, where every detail comes to life with unparalleled clarity and precision.

In The Box:

  • LiveScope GLS 10 sonar black box
  • Panoptix LVS34 transducer
  • Perspective mount
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • 2 meter Garmin Marine Network cable (small connector)
  • Network adapter cable
  • Documentation


  • Sonar Type: LiveScope™ Plus


  • Included Transducer: LVS34
  • Screen Size: 10"
  • Touchscreen: Yes
  • Transducer Included: Yes
  • Box Dimensions: 8"H x 10"W x 14"L WT: 20.7 lbs
