Garmin B60 600W Tilted Element 12 Degree - 8-Pin [010-10982-21]

Regular price $309.50
Sale price $309.50 Regular price $324.99
Product description

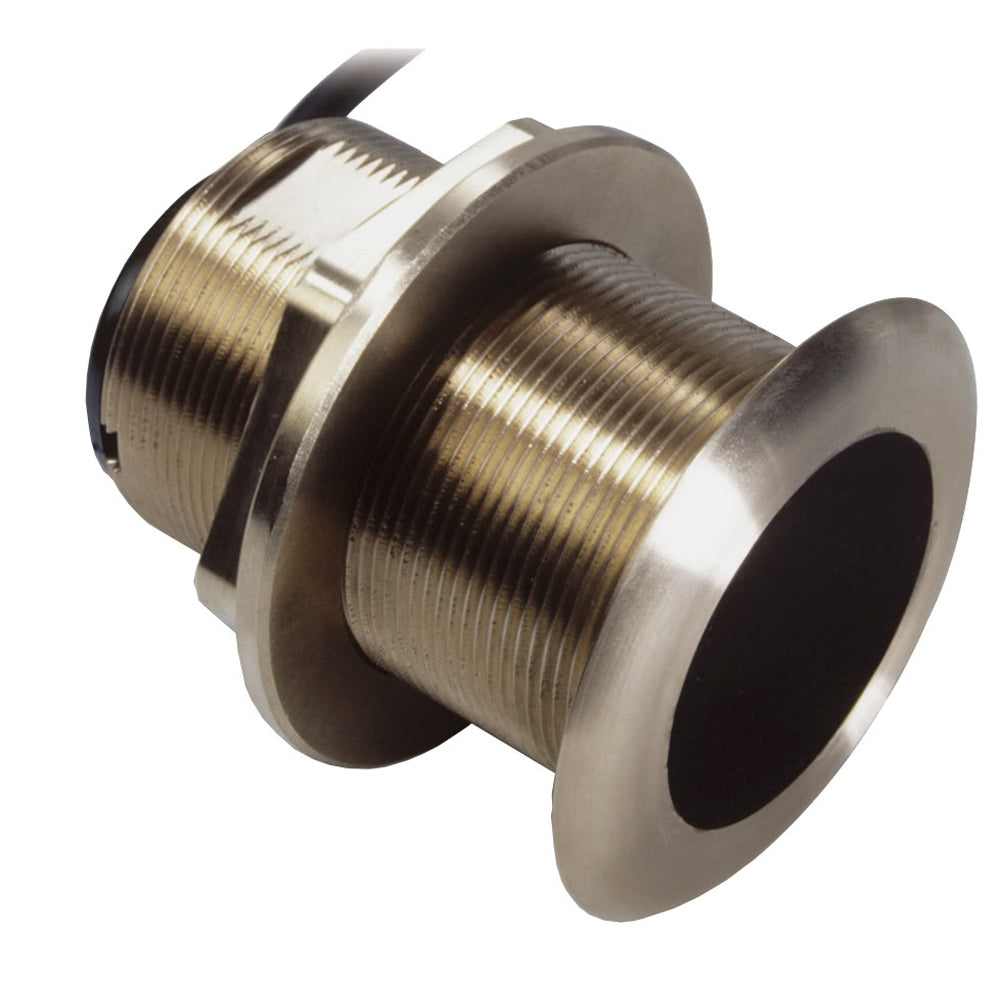

B60 600W Tilted Element 12° - 8-Pin

This entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.

An excellent choice for fiberglass and wood hulls, this 600W 8-pin transducer has a depth of 800' to 1,200'; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 8
  • Mounting Style: Thru-Hull
  • Imagining: Standard
  • Chirp: No
  • Cable Length (Feet): 39'
  • Box Dimensions: 5"H x 6"W x 10"L WT: 5 lbs
  • UPC: 753759971830

Owner's Manual (pdf)
Brochure (pdf)
