Garmin Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 150-250kHz [010-12188-20]

Regular price $3,469.50
Sale price $3,469.50 Regular price $4,129.99
Product description

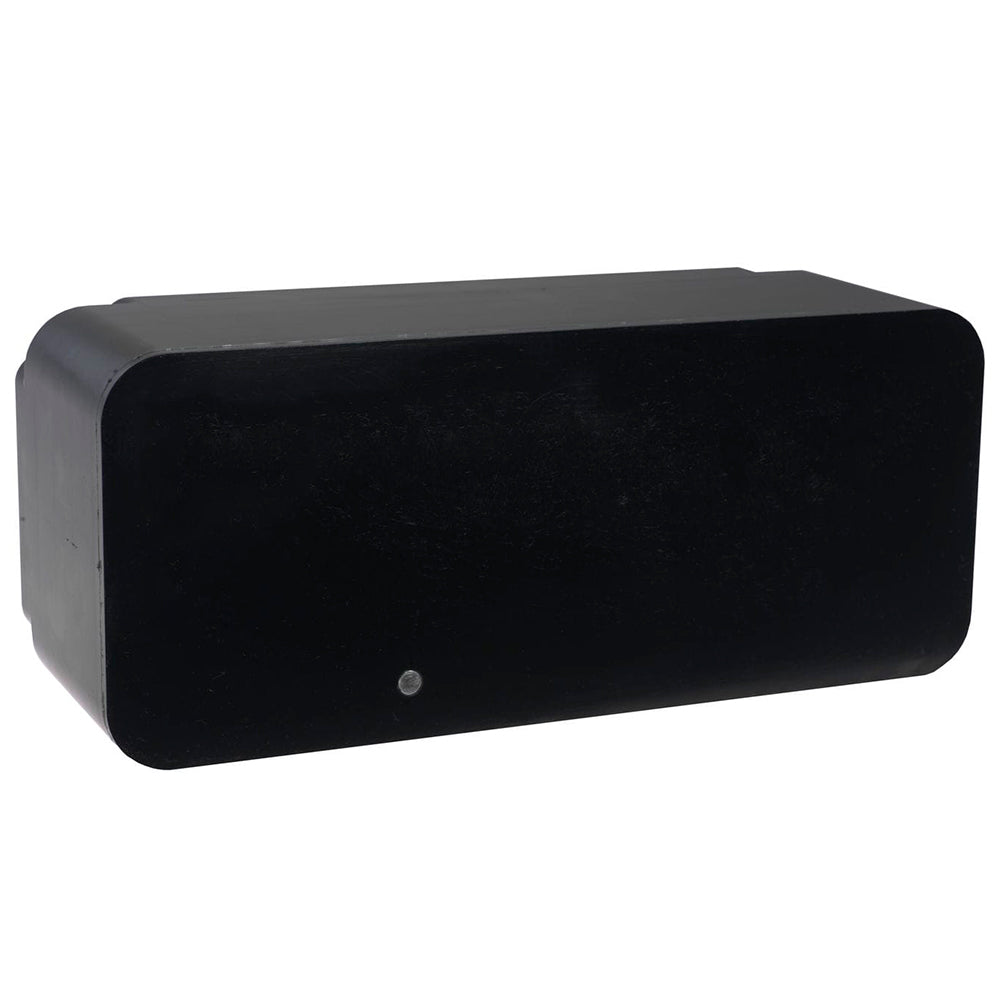

Airmar CM599LHW 1-3kW Pocket Mounted Transducer, 28-60 & 150-250kHz

This pocket mounted transducer uses very narrow beams and low frequencies and wide beams for high frequencies to send depth and temperature to your Garmin Marine Network.

A pocket version of the R599LH, this 1 to 3 kW bare wire plastic transducer has a maximum depth of 10,000 feet; an operating frequency of 28 to 60 kHz and 150 to 250 kHz; and a beamwidth of 9x23 degrees or a constant 25 degrees. The pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to


  • Temperature: Yes
  • Speed Included: No
  • Pins: Bare Wires
  • Mounting Style: Pocket
  • Cable Length (Feet): 70'
  • Chirp: Low/High Wide
  • Imagining: Standard
  • Box Dimensions: 12"H x 13"W x 17"L WT: 33.5 lbs
  • UPC: 753759123628

Owner's Manual (pdf)
Brochure (pdf)
